Technische Dokumentationbyhx_p_6-439.pdf
1.12 MB
Elbow screw-in fitting
R 1/2 a., pipe Ø 20 Galvanised steel, heavy-duty designItem-no.: 1407125Supplier number: WEVR1220SSTcustoms tariff number: 73079910EAN: 4047322638234
Quantity:
1 PiecePackable
Item available in 11 variants:
Price and stock visible after login
Description

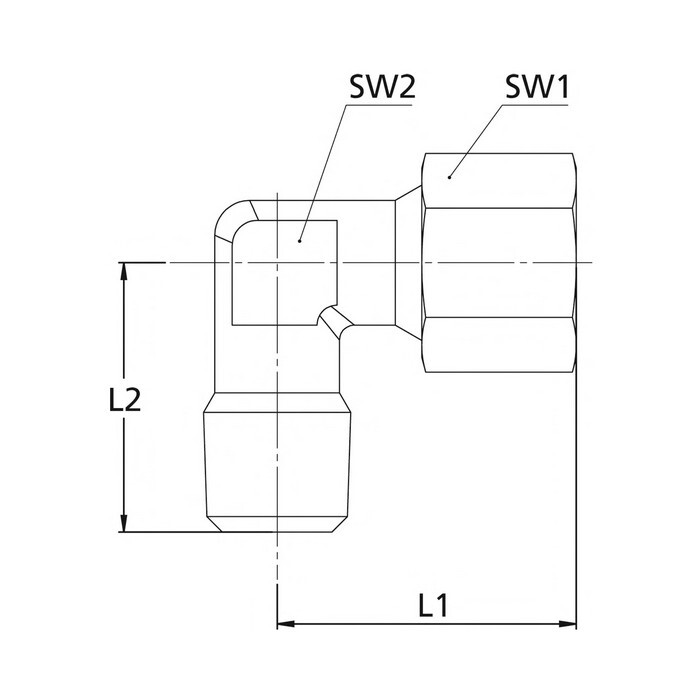

Male elbow, R 1/2 o., Pipe exterior Ø 20 mm, PN max. 400 bar, a/f1 36, a/f2 27, galvanised steel. Male elbow, conical male thread acc. to ISO 7-1, heavy type
Attributes
L1
48,0 mm
L2
42,0 mm
Material
Galvanised steel (DIN 2353)
PN
400 bar
Pipe outer Ø
20 mm
Riegler article number
159161
SW 1
36 mm
SW 2
27 mm
Screw thread
R 1/2
