Elbow screw-in fitting
R 3/8 a., pipe Ø 16 Galvanised steel, heavy-duty designItem-no.: 1407124Supplier number: WEVR3816SSTcustoms tariff number: 73079910EAN: 4047322638210
Quantity:
1 PiecePackable
Item available in 11 variants:
Price and stock visible after login
Description
Male elbow, R 3/8 o., Pipe exterior Ø 16 mm, PN max. 400 bar, a/f1 30, a/f2 24, galvanised steel. Male elbow, conical male thread acc. to ISO 7-1, heavy type

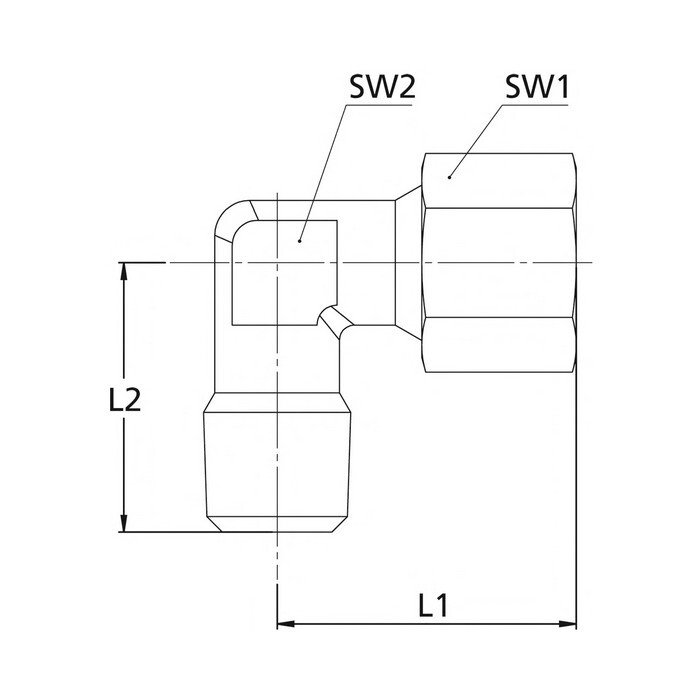

Attributes
L1
43,0 mm
L2
32,0 mm
Material
Galvanised steel (DIN 2353)
PN
400 bar
Pipe outer Ø
16 mm
Riegler article number
159159
SW 1
30 mm
SW 2
24 mm
Screw thread
R 3/8
