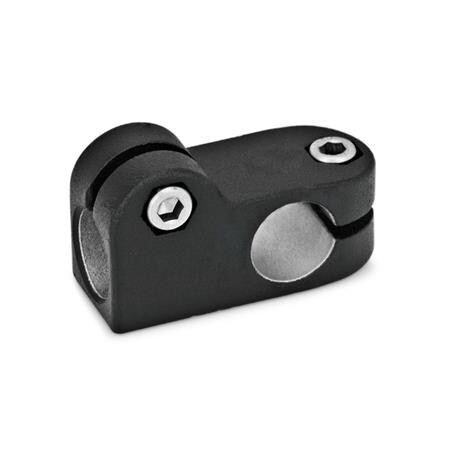

Angle clamp connector
GN 191-B10-B10-2-SWAL - Aluminium
Item-no.: 1190270Supplier number: 191-B10-B10-2-SWEAN: 4045525646162
Quantity:
1 PiecePackable
Item available in 12 variants:
Price and stock visible after login
Description
The clamping bores of T-angle connector clamps GN 191 are mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462. At the screw locations z1 / z2, the socket cap screws reduce the bore cross-section for clamping. For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
Attributes
Borehole d1
B 10
Borehole d2
B 10
Code number
2 - with 2 stainless steel cylinder screws ISO 4762
For z2l3
63
L1
61
L2
34.5
Material
AL - Aluminium
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Weight
0.097 kg
k Clamping length
25
m
39
z1 Schraubstellen
M6-20
z1Schraub-stelle
M6-20
z2 Screw point
M6-20
