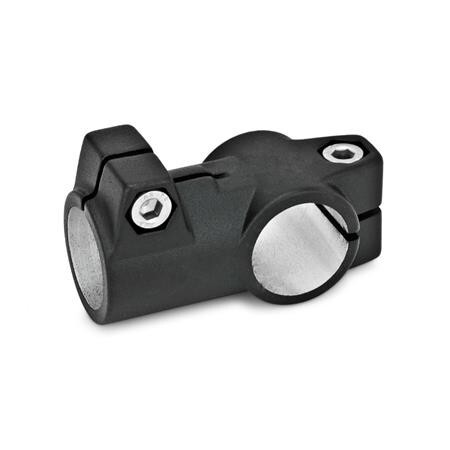

Angle clamp connector
GN 192-B20-B20-40-2-SWAL - Aluminium
Item-no.: 1190310Supplier number: 192-B20-B20-40-2-SWEAN: 4045525646674
Quantity:
1 PiecePackable
Item available in 28 variants:
Price and stock visible after login
Description
The clamping bores of T-angle connector clamps GN 192 are mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462. At the screw locations z1 / z2, the socket cap screws reduce the bore cross-section for clamping. For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
Attributes
Borehole d1
B 20
Borehole d2
B 20
Clamping length k1
40
Code number
2 - with 2 stainless steel cylinder screws ISO 4762
L1
92
L2
52
Material
AL - Aluminium
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Weight
0.267 kg
k2 Klemmlänge
42.5
m
60
z1 Schraubstellen
M8-25
z1Schraub-stelle
M8-25
z2 Screw point
M8-25
