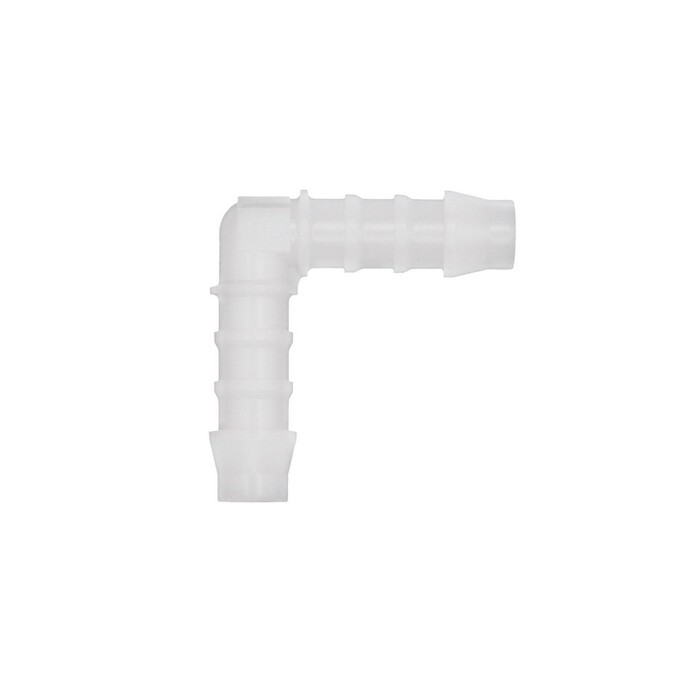

Elbow hose connector
LW25 Acetal polymerisate POMItem-no.: 1246565Supplier number: 34.819customs tariff number: 39174000EAN: 4047322385237
Quantity:
1 PiecePackable
Item available in 11 variants:
Price and stock visible after login
Description
Angled hose fitting supports, for hose I.D. 25 mm, working pressure max. 10 bar, temperature range -40 to 80 °C, POM. Lightweight tube connectors distinguished by high strength, toughness, resistance to abrasion and impact resistance.
Attributes
For hose
LW 25 mm

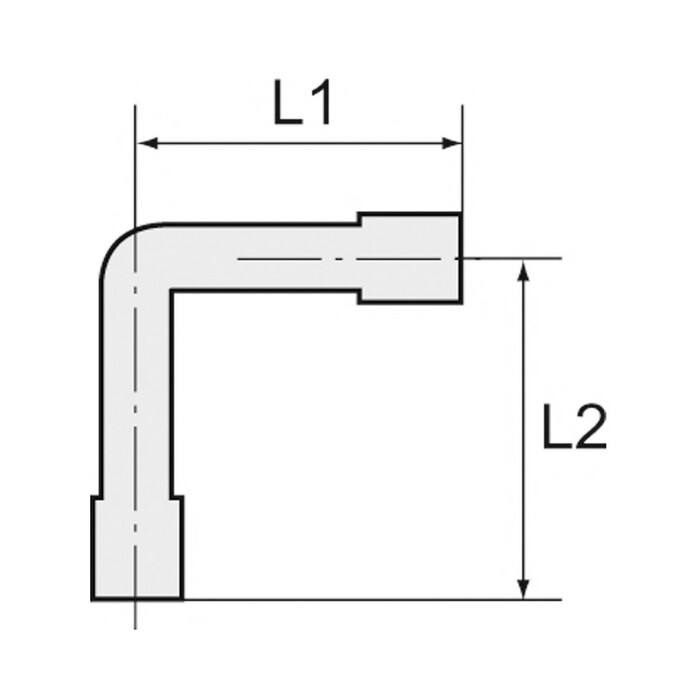

L1
52,5 mm
L2
52,5 mm
Material
Acetal copolymer (POM)
Max. permissible overpressure
10 bar
Riegler article number
111017
Temperature range max.
80 °C
Temperature range min.
-40 °C
Working pressure max.
10 bar
