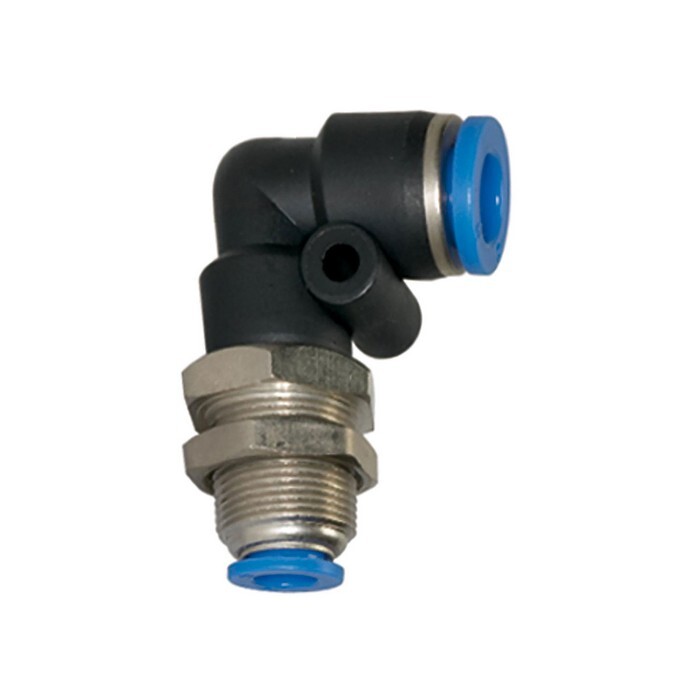

Angled bulkhead push-in fitting
2x SD4, M12x1 switch panel thread Blue series, KU- nickel-plated brassItem-no.: 1245516Supplier number: 152.004customs tariff number: 39174000EAN: 4047322197069
Quantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
Push-in bulkhead L-connector »Blue Series«, M12x1, for hose exterior Ø 4 mm, pmax short term 15 bar. Push-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic.
Attributes
Application range
Air, vacuum
Arbeitsdruck max. kurzzeitig
15 bar
For outer hose Ø
4 mm
L1
17,5 mm
L2
31,3 mm
Loosening ring
Plastic
Material
Plastic or nickel-plated brass
Medium
Compressed air, neutral and non-hazardous gases and liquids
Product range
Blue series
Recommended hose
PU or PA (nylon)
Riegler article number
109821
SW
14 mm
Sealing material
NBR
Series
Blue series
Switch panel thread
M12x1,0
Temperature range max.
80 °C
Temperature range min.
-20 °C
Working pressure max.
15 bar
Working pressure min.
-0,95 bar
