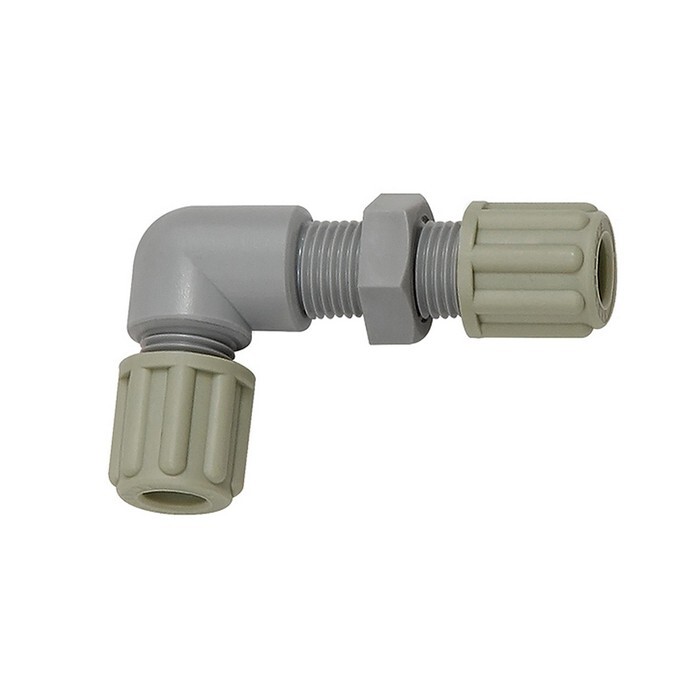

Angled bulkhead connection
M10x1, 2x for hose 4/6 PolyamideItem-no.: 1245520Supplier number: 140.41customs tariff number: 39174000EAN: 4047322027687
Quantity:
1 PiecePackable
Item available in 4 variants:
Price and stock visible after login
Description
Angled bulkhead connector, M10x1, for hose 4/6 mm, AF 14, Working pressure max. 10 bar (20 °C)/max. 1 bar (60 °C), PA. Manufactured from high impact-resistant, UV-stabilised engineering plastic, extremely resistant to weathering. Good chemical resistance to benzine, diesel oil, fuel oil and alkalis. Not suitable for use with acids.
Attributes
Clamping ring
Polypropylene (PP)
For hose
4/6 mm
Knurled nut
Polypropylene (PP)

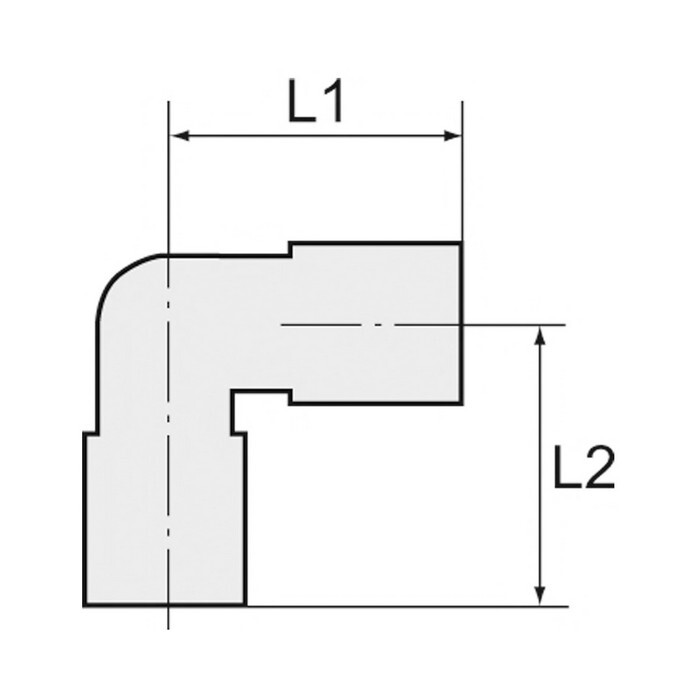

L1
43,0 mm
L2
25,0 mm
Material
PA
Max. operating pressure at 20 °C
10 bar
Max. operating pressure at 60 °C
1 bar
Operating pressure min.
-0,9 bar
Operating temperature max.
60 °C
Operating temperature min.
-20 °C
Riegler article number
110844
SW
14 mm
Screw plug body
Polyamide (PA)
Screw thread
M10x1,0
für Schlauch-Außen-Ø
6 mm
