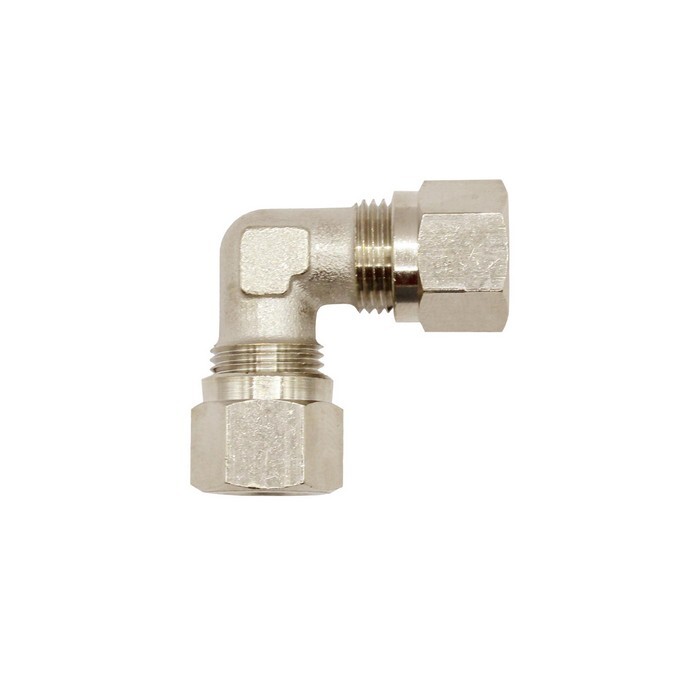

Elbow screw connection
W08L max 60 bar, DIN2353 compl. with nut, Ms. vern.Item-no.: 1169187Supplier number: N 75customs tariff number: 74122000EAN: 4047322162777
Quantity:
1 Piece
=
1 BundlePackable
Item available in 7 variants:
Price and stock visible after login
Description
Angled fitting, Pipe exterior Ø 8 mm, AF 11, AF1 14, Operating pressure max. 60 bar, Temperature max 150 °C, nickel-plated brass.
Attributes
L1
24,0 mm
Material
Nickel-plated brass
Max. operating pressure
60 bar
Pipe outer Ø
8 mm
Riegler article number
111998
SW
11 mm
SW 1
14 mm
Temperature range max.
150 °C
