Angle screw-in fitting
AG 1/4", for hose 6/8 Polypropylene PPItem-no.: 1246477Supplier number: 140.62-PPcustoms tariff number: 39174000EAN: 4047322027908
Quantity:
1 PiecePackable
Item available in 16 variants:
Price and stock visible after login
Description
Angled screw-in fitting, G 1/4 o., for hose 6/8 mm, Working pressure max. 10 bar (20 °C)/max. 2.5 bar (90 °C), PP. Chemically resistant to almost all inorganic acids and bases, even in high concentrations and at temperatures greater than 90 °C.
Attributes
For hose
6/8 mm

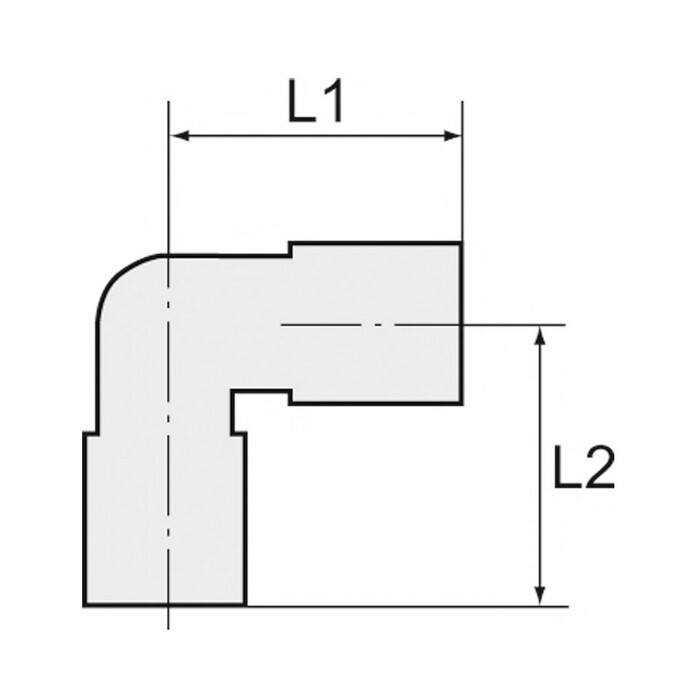

L1
30,0 mm
L2
27,0 mm
Material
Polypropylene (PP)
Max. operating pressure at 20 °C
10 bar
Max. operating pressure at 90 °C
2,5 bar
Operating pressure min.
-0,9 bar
Operating temperature max.
90 °C
Operating temperature min.
5 °C
Riegler article number
110869
Screw thread
G 1/4
für Schlauch-Außen-Ø
8 mm
