Riegler

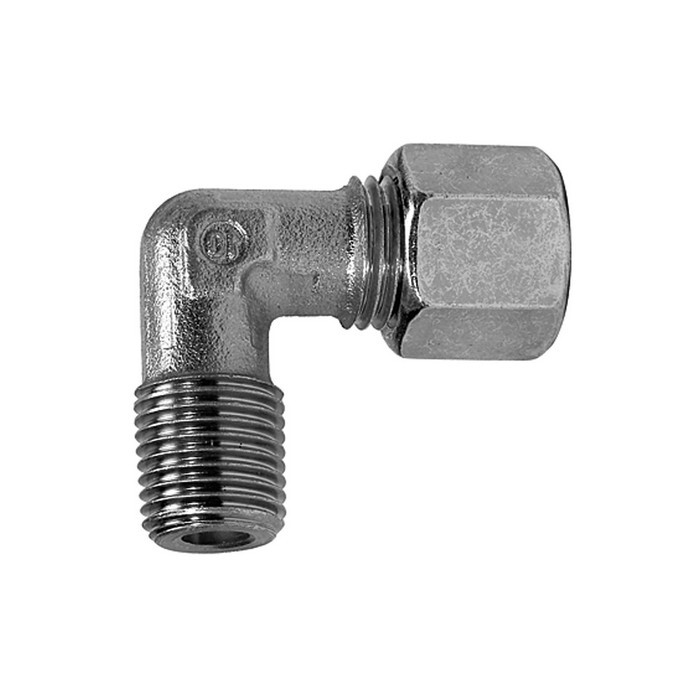

Angle screw-in fitting

W22LR3/4keg. max 160 bar Galvanised steel, complete
Item-no.: 1245385customs tariff number: 73079910

Quantity: ​​ 1 PiecePackable
Item available in 16 variants:
Short-term Sourcing

Description
Angled screw-in fitting, R 3/4 o., Pipe exterior Ø 22 mm, PN max. 160 bar, AF1 36, AF2 27, galvanised steel. Male elbow, conical male thread acc. to ISO 7-1, light type
Attributes
L1
44,0 mm
L2
42,0 mm
Material
Galvanised steel (DIN 2353)
PN
160 bar
Pipe outer Ø
22 mm
Riegler article number
112183
SW 1
36 mm
SW 2
27 mm
Screw thread
R 3/4
