Description

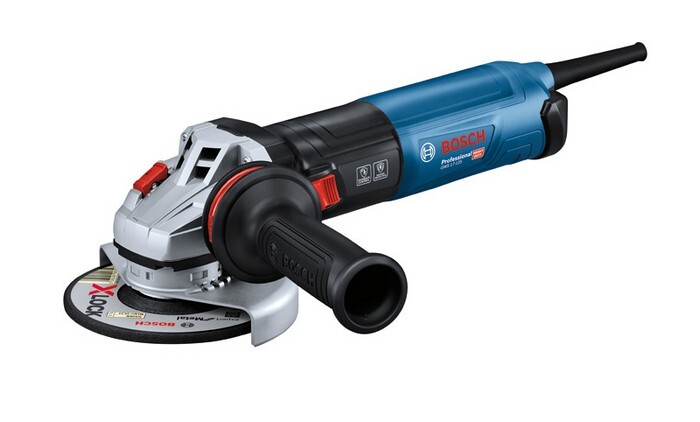

Angle Grinder GWS 17-125, The GWS 17-125 Professional convinces with high power, overload capability, and improved dust protection by air inlets at the backside of the tool with removable dust filters and therefore provides maximum productivity in the metal industry. The small angle grinder with a powerful 1,700 W motor achieves a better convenience thanks to its significantly small grip size. It also features KickBack Control, Restart Protection, and a Vibration Control side handle for a high user protection. The GWS 17-125 Professional grinds metal or welds seams and cuts metal, concrete, bricks, and tiles. It is compatible with Bosch’s dust extraction systems GDE 125 EA-T Professional and GDE 115 / 125 FC-T Professional. Additional features of the small angle grinder are Constant Speed, Soft Start, and Overload Protection. Vibration Control auxiliary handle (2 608 900 000), Protective guard (1 605 510 365), Protective clip-on cutting guard metal (2 608 000 756), Dust filter (2 607 432 053), Two-hole spanner (1 607 950 043), Backing flange (1 605 703 099), Locking nut (1 603 340 040), Cardboard box
Attributes
Borehole, Ø
22.2 mm
Disc Ø
125 mm
Grinding spindle thread
M14
Idle speed
11500 min-1
Main handle
Bar handle
Measurement uncertainty k (sanding with sanding sheet)
1.5 m/s²
Measurement uncertainty k (surface grinding (roughing ))
1.5 m/s²
Nominal input power
1700 W
Vibration emission value ah [sanding with sanding sheet]
2.4 m/s²
Vibration emission value ah [surface grinding (roughing)]
5.2 m/s²
Voltage range
220 - 240 V
Voltage range, from
220 V
Voltage range, up to
240 V
Voltage, electrical
230 V
Weight
2.2 kg
