Description

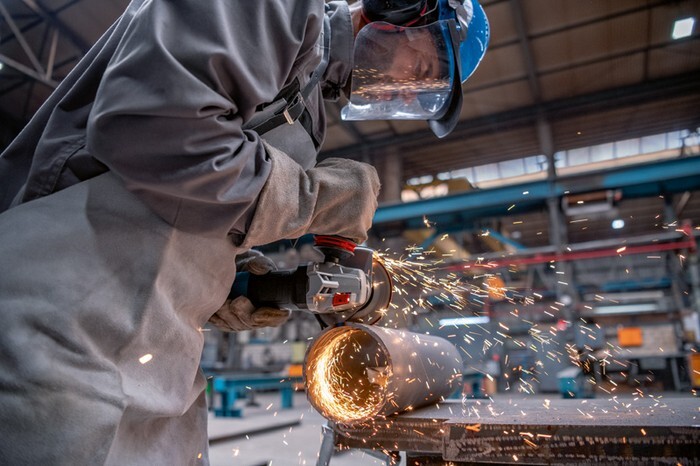

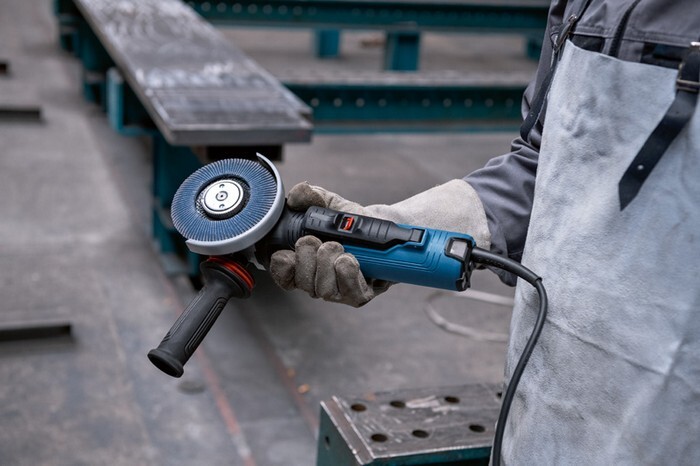

Angle Grinder GWS 17-125 PSB, The GWS 17-125 PSB Professional features a new PROtection switch for maximum convenience during work and an ergonomic and slim grip design. The PROtection switch immediately shuts off the angle grinder as soon as the switch is released. In addition, the Intelligent Brake System enables fast disc standstill. The powerful small angle grinder has an improved dust protection with air inlets at the backside of the tool. For high user protection, the GWS 17-125 PSB is equipped with KickBack Control. The GWS 17-125 PSB Professional is perfect for grinding metal or welding seams and cutting metal, concrete, bricks, and tiles. It is compatible with Bosch’s dust extraction systems GDE 125 EA-T Professional and GDE 115 / 125 FC-T Professional. Features like Speed Selection, Constant Speed, Soft Start, and Overload Protection are also included. Cardboard box, Vibration Control auxiliary handle (2 608 900 000), Protective guard (1 605 510 365), Protective clip-on cutting guard metal (2 608 000 756), Two-hole spanner (1 607 950 043), Backing flange (1 605 703 099), Locking nut (1 603 340 040), Dust filter (2 608 000 824), SDS quick-locking nut (1 603 340 031)
Attributes
Borehole, Ø
22,2 mm
Disc Ø
125 mm
Grinding spindle thread
M14
Idle speed
2.800 – 11.500 min-1
Idle speed, from
2800 min-1
Idle speed, up to
11500 min-1
Main handle
Bar handle
Measurement uncertainty k (sanding with sanding sheet)
1,5 m/s²
Measurement uncertainty k (surface grinding (roughing ))
1,5 m/s²
Nominal input power
1.700 W
Packaging dimensions (width x length x height)
130 x 390 x 160 mm

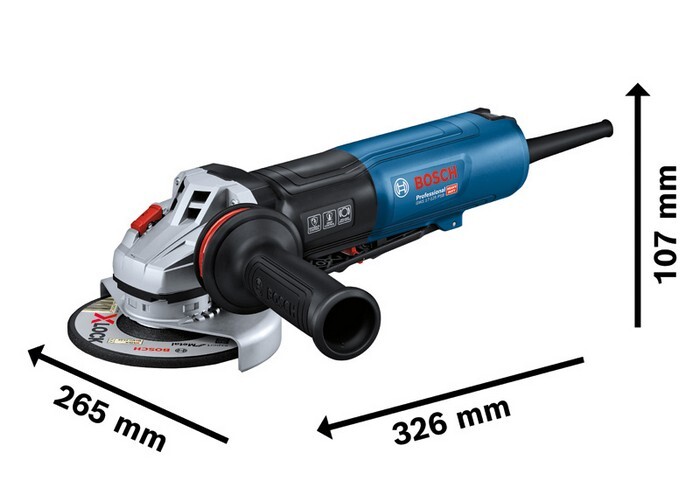

Tool dimensions (length)
326 mm
Vibration emission value ah [sanding with sanding sheet]
3,2 m/s²
Vibration emission value ah [surface grinding (roughing)]
4,8 m/s²
Voltage range
220 – 240 V
Voltage range, from
220 V
Voltage range, up to
240 V
Voltage, electrical
230 V
Weight
2,3 kg
