Description

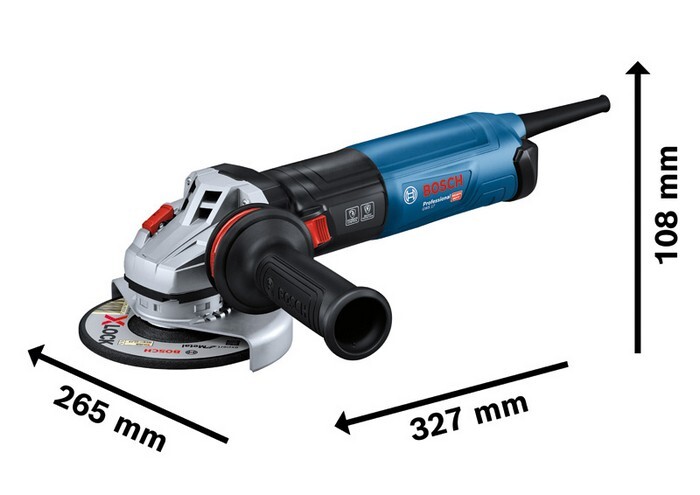

Angle Grinder GWS 17-125 S INOX, The high torque and low rotation speed of the GWS 17-125 S INOX Professional ensure best results on stainless steel surfaces. Its high power with 1,700 W motor, overload capability, and improved dust protection by air inlets at the backside of the tool with removable dust filters are the building blocks for maximum productivity. The small angle grinder’s KickBack Control, Restart Protection, and a Vibration Control side handle ensure high user protection and a better working experience. The GWS 17-125 S INOX Professional does grinding and sanding stainless steel perfectly. It is compatible with Bosch’s dust extraction systems GDE 125 EA-T Professional and GDE 115 / 125 FC-T Professional. Additional features are Constant Speed, Soft Start, and Overload Protection. Vibration Control auxiliary handle (2 608 900 000), Protective guard (1 605 510 365), Protective clip-on cutting guard metal (2 608 000 756), Dust filter (2 607 432 053), Two-hole spanner (1 607 950 043), Backing flange (1 605 703 099), Locking nut (1 603 340 040), Cardboard box
Attributes
Borehole, Ø
22.2 mm
Disc Ø
125 mm
Grinding spindle thread
M14
Idle speed
1900 - 7800 min-1
Main handle
Bar handle
Measurement uncertainty k (sanding with sanding sheet)
1.5 m/s²
Measurement uncertainty k (surface grinding (roughing ))
1.5 m/s²
Nominal input power
1700 W
Vibration emission value ah [sanding with sanding sheet]
2.5 m/s²
Vibration emission value ah [surface grinding (roughing)]
5.4 m/s²
Voltage range
220 - 240 V
Voltage range, from
220 V
Voltage range, up to
240 V
Voltage, electrical
230 V
Weight
2.2 kg
