Description

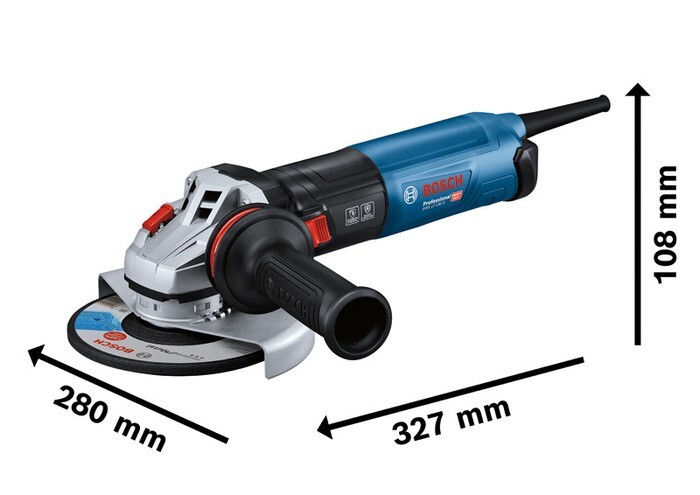

Angle Grinder GWS 17-150 S, The GWS 17-150 S Professional provides high power, overload capability, and improved dust protection by air inlets at the backside of the tool allows maximum productivity. Its significantly small grip size gives it much better convenience while working in the metal industry. Its features like KickBack Control, Restart Protection, and a Vibration Control side handle are important for a high level of user protection. The GWS 17-150 S Professional does all the jobs when it comes to grinding metal or welding seams and cutting metal, concrete, bricks, and tiles. The small angle grinder features Speed Selection, Constant Speed, Soft Start, and Overload Protection. Vibration Control auxiliary handle (2 608 900 000), Protective guard (1 605 510 366), Protective clip-on cutting guard metal (2 608 000 759), Dust filter (2 607 432 053), Two-hole spanner (1 607 950 043), Backing flange (1 605 703 099), Locking nut (1 603 340 040), Cardboard box
Attributes
Borehole, Ø
22,2 mm
Disc Ø
150 mm
Grinding spindle thread
M14
Idle speed
2.400 – 9.700 min-1
Idle speed, from
2400 min-1
Idle speed, up to
9700 min-1
Main handle
Bar handle
Measurement uncertainty k (sanding with sanding sheet)
1,5 m/s²
Measurement uncertainty k (surface grinding (roughing ))
1,5 m/s²
Nominal input power
1.700 W
Packaging dimensions (width x length x height)
130 x 390 x 160 mm
Tool dimensions (length)
327 mm
Vibration emission value ah [sanding with sanding sheet]
3,5 m/s²
Vibration emission value ah [surface grinding (roughing)]
8,0 m/s²
Voltage range
220 – 240 V
Voltage range, from
220 V
Voltage range, up to
240 V
Voltage, electrical
230 V
Weight
2,2 kg
