Angle connector
GN 32I-40408S-1-A-NAL - Aluminium
Item-no.: 1662024Supplier number: 32I-40408S-1-A-Ncustoms tariff number: 76169990EAN: 4045525930254
Quantity:
1 PiecePackable
Price and stock visible after login
Description

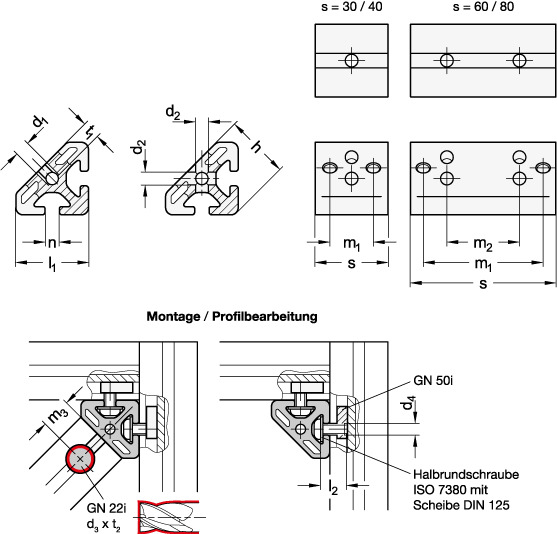

Angle connectors GN 32i fasten aluminum profiles together at right angles and are primarily used for creating corner braces at 45° angles. The braces are fastened with universal connectors GN 22i, requiring their anti-twist protection to be removed. This requires the profile to be machined.
Attributes
Code number
1 - Corner mounting
Form
A - without fixing set
Groove width n
8
L2
16
Length l1
40
Material
AL - Aluminium
Profilbreite s
40
Profiltyp
S - heavy
RoHS
Ja
Surface
N - anodised, natural colour
Weight
0.073 kg
d1
M 8
d2
6.5
d3
20
d4
M 8
h
36.6
m1
24
m3
20
s
30/40
t1
14
t2
16
