Angle connector
GN 32I-40408S-2-A-NAL - Aluminium
Item-no.: 1662025Supplier number: 32I-40408S-2-A-Ncustoms tariff number: 76169990EAN: 4045525930278
Quantity:
1 PiecePackable
Price and stock visible after login
Description

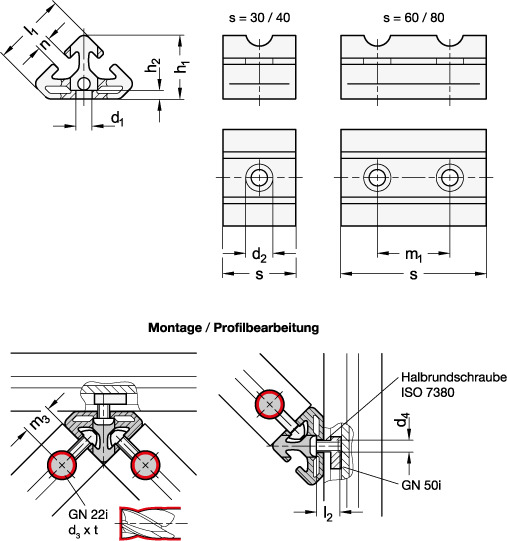

Angle connectors GN 32i fasten single or double braces to aluminum profiles at an angle of 45°. The braces are fastened with universal connectors GN 22i. This requires the profile to be machined.
Attributes
Code number
2 - Single and double mounting
Form
A - without fixing set
Groove width n
8
L2
16
Length l1
40
Material
AL - Aluminium
Profilbreite s
40
Profiltyp
S - heavy
RoHS
Ja
Surface
N - anodised, natural colour
Weight
0.067 kg
d1
9
d2
15
d3
20
d4
M 8
h1
34.9
h2
4.5
m3
20
s
30/40
t
16
