Cube connector
GN 33B-30308-2-C-ABSZSItem-no.: 1662030Supplier number: 33B-30308-2-C-ABSZSEAN: 4045525930476
Quantity:
1 PiecePackable
Item available in 4 variants:
Price and stock visible after login
Description

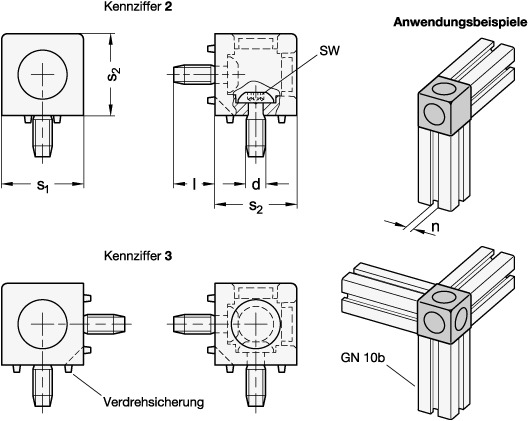

Cube connectors GN 33b fasten two or three aluminum profiles together on their end faces, at right angles and with anti-twist protection. Machining of the profile is not necessary. The self-forming thread of the screws should be lubricated to facilitate assembly. The end faces of the aluminum profiles are covered by the cube connectors, which ensures a visually appealing appearance. If panels are used in the slot, they must be given a suitable corner chamfer.
Attributes
Breite s1
30
Code number
2 - Connection of 2 profiles
Farbe der Abdeckkappen
S - black
Form
C - with fixing set
Groove width n
8
Höhe s2
30
Length l
21
Length l ≈ Length l
21
RoHS
Ja
SW
5
Tightening torque
25 Nm
Tightening torque in Nm
25
Weight
0.055 kg
Werkstoff / Oberfläche (Gehäuse)
AB - Aluminium, bright
Werkstoff / Oberfläche (Schrauben)
SZ - Steel, galvanised, blue passivated
dGewindeselbstformend
S 8
