Push-in Y-fitting
AG 1/2", SD6, swivelling, O-ring Blue series, KU- nickel-plated brassItem-no.: 1114508Supplier number: 133.012-6EAN: 4047322025775
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 22 variants:
Price and stock visible after login
Description
Push-in Y-fitting »Blue Series«, rotating, G 1/2 o., for hose exterior Ø 6 mm, pmax short term 15 bar. Push-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic.
Attributes
Application range
Air, vacuum
For outer hose Ø
6 mm

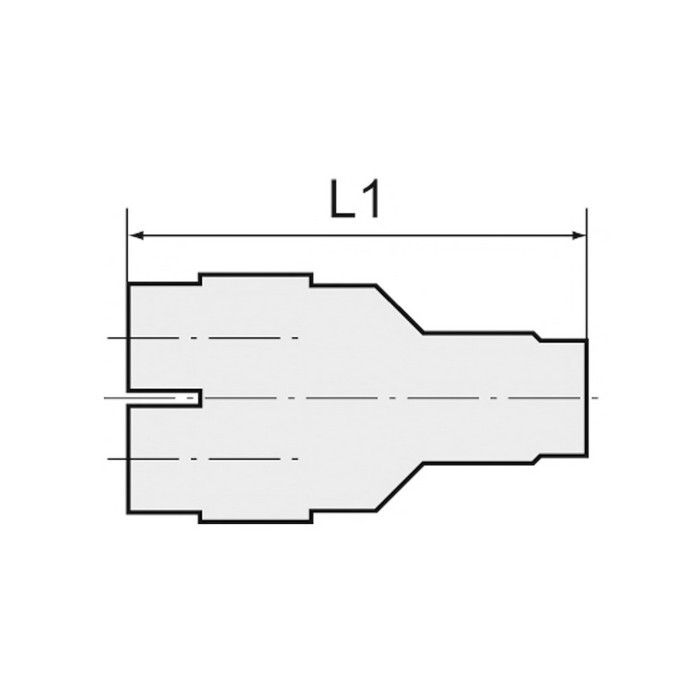

L1
49 mm
Loosening ring
Plastic
Material
Plastic or nickel-plated brass
Medium
Compressed air, neutral and non-hazardous gases and liquids
Product range
Blue series
Recommended hose
PU or PA (nylon)
Riegler article number
109600
SW
14 mm
Screw thread
G 1/2
Temperature range max.
80 °C
Temperature range min.
-20 °C
Working pressure max.
15 bar
