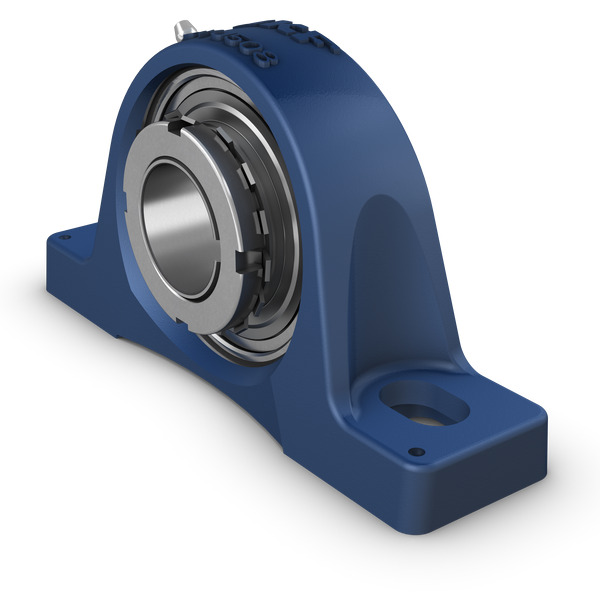

Y pillow block unit
SYJ 55 KF for adapter sleeve, tapered bore, SKFItem-no.: 1067393Supplier number: SYJ 55 KFcustoms tariff number: 84832000EAN: 7316570870145
Quantity:
1 Piece
=
1 PackagingPackable
Price and stock visible after login
Description
Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a housing that can be bolted to a support surface. This variant is locked with an adapter sleeve, enabling quick and easy mounting onto the shaft. The adapter sleeve is not included in the unit and should be ordered separately.
Attributes
Bore type
Conical
Centre distance between bolt holes
171,5 mm
Coat
Ohne
Dynamische Tragzahl
43.6 kN
Holding function, inner ring
Clamping sleeve
Housing type
Pillow block bearing
Lubricant
Fat
Material housing
Grey cast iron
Material, bearing
Rolling bearing steel
Shaft diameter
50 mm
Statische Tragzahl
29 kN
Total bearing width
39,9 mm
Total width of the housing
60 mm
Type of sealing
