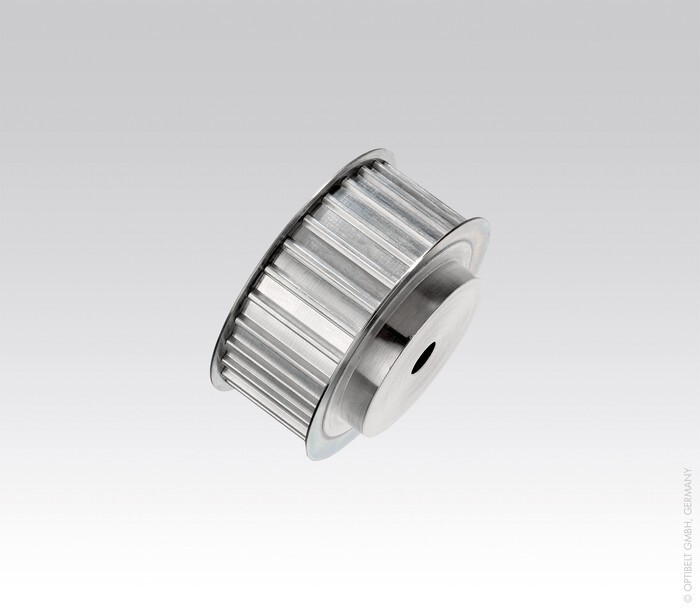

Toothed disc HTD
P 36-8M-30 for cylindrical bore, STItem-no.: 1072273customs tariff number: 84835020EAN: 4014486229868
Quantity:
1 PiecePackable
Price and stock visible after login
Description
HTD (high torque drive) pulleys are heavy duty pulleys, designed to be used with HTD belts in synchronous belt drives. The pulleys are prepared with a pilot bore, which can be machined to the desired dimensions before mounting.
Attributes
De
90.300000 mm
Df
97 mm
Dm
75 mm
Dp
91.670000 mm
F
38 mm
Finished bore d max
45 mm
Material
ST
Nabendurchmesser
70 mm
Number of teeth
36
Outer diameter
90.3 mm
Predrill hole d
15 mm
Product group
optibelt ZRS Cylindrical
Riemenbreite
30 mm
Teilung
8 mm
Typ
HTD timing belt pulleys
Version
6F
Weight
2 kg
Weight per
Piece
