Toothed disc HTD
TB 28-8M-30 for taper bush 1210, STItem-no.: 1072326customs tariff number: 84835020EAN: 4014486230482
Quantity:
1 PiecePackable
Price and stock visible after login
Description

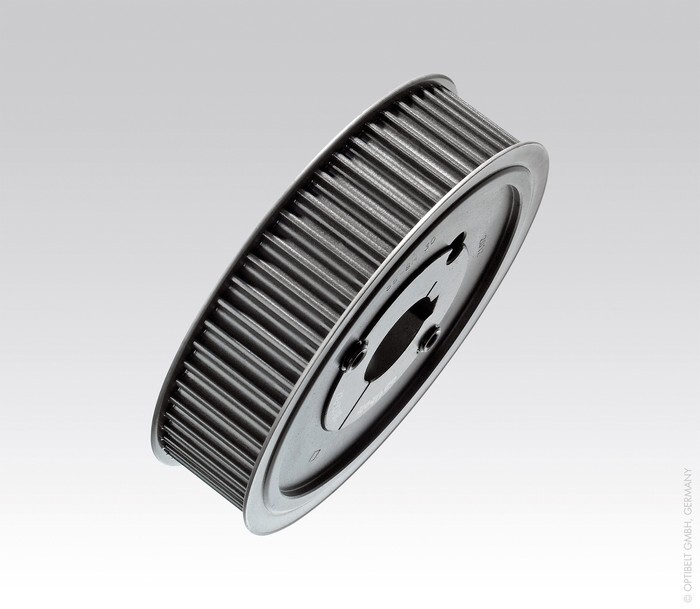

HTD (high torque drive) pulleys are heavy duty pulleys, designed to be used with HTD belts in synchronous belt drives. The pulleys are easily mounted on the shafts using the appropriate taper bushings.
Attributes
De
70.080000 mm
Df
75 mm
Dp
71.300000 mm
F
38 mm
Material
ST
Number of teeth
28
Outer diameter
70.08 mm
Predrill hole d
13 mm
Product group
optibelt ZRS for taper bush
Riemenbreite
30 mm
Socket reference
TB 1210
Teilung
8 mm
Typ
HTD timing belt pulleys
Version
5F
Weight
0.47 kg
Weight per
Piece
