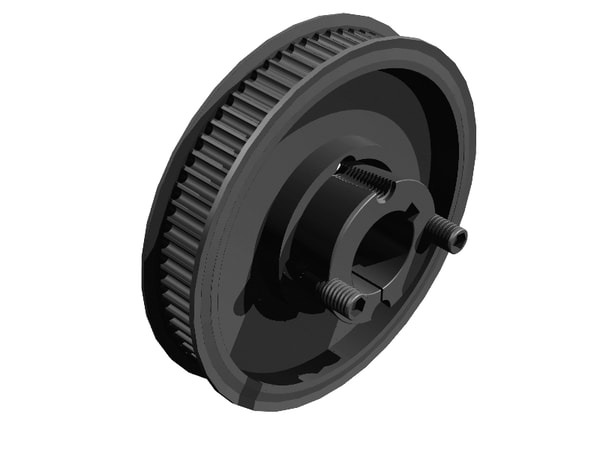

Toothed disc HTD
TB 32-8M-20 for taper bush 1610, STItem-no.: 1072336customs tariff number: 84835020EAN: 4014486230536
Quantity:
1 PiecePackable
Price and stock visible after login
Description
HTD (high torque drive) pulleys are heavy duty pulleys, designed to be used with HTD belts in synchronous belt drives. The pulleys are easily mounted on the shafts using the appropriate taper bushings.
Attributes
De
80.160000 mm
Df
87 mm
Dp
81.490000 mm
F
28 mm
Material
ST
Number of teeth
32
Outer diameter
80.16 mm
Predrill hole d
3 mm
Product group
optibelt ZRS for taper bush
Riemenbreite
20 mm
Socket reference
TB 1610
Teilung
8 mm
Typ
HTD timing belt pulleys
Version
5F
Weight
0.45 kg
Weight per
Piece
