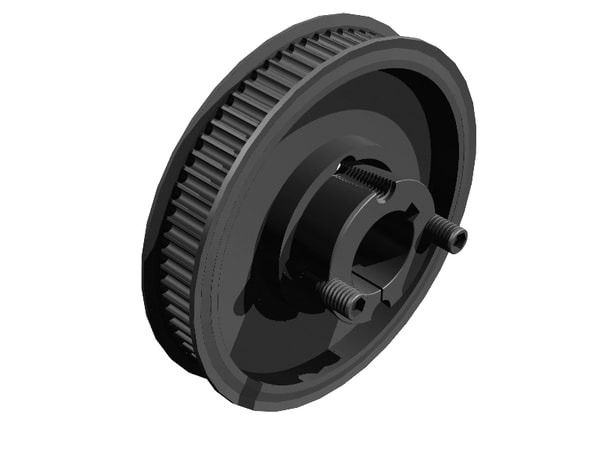

Toothed disc HTD
TB 34-5M-15 for taper bush 1008, STItem-no.: 1072339customs tariff number: 84835020EAN: 4014486229431
Quantity:
1 PiecePackable
Price and stock visible after login
Description
HTD (high torque drive) pulleys are heavy duty pulleys, designed to be used with HTD belts in synchronous belt drives. The pulleys are easily mounted on the shafts using the appropriate taper bushings.
Attributes
De
52.970000 mm
Df
57 mm
Dp
54.110000 mm
F
22 mm
Material
ST
Nabendurchmesser
43 mm
Number of teeth
34
Outer diameter
52.97 mm
Product group
optibelt ZRS for taper bush
Riemenbreite
15 mm
Socket reference
TB 1008
Teilung
5 mm
Typ
HTD timing belt pulleys
Version
3F
Weight
0.19 kg
Weight per
Piece
