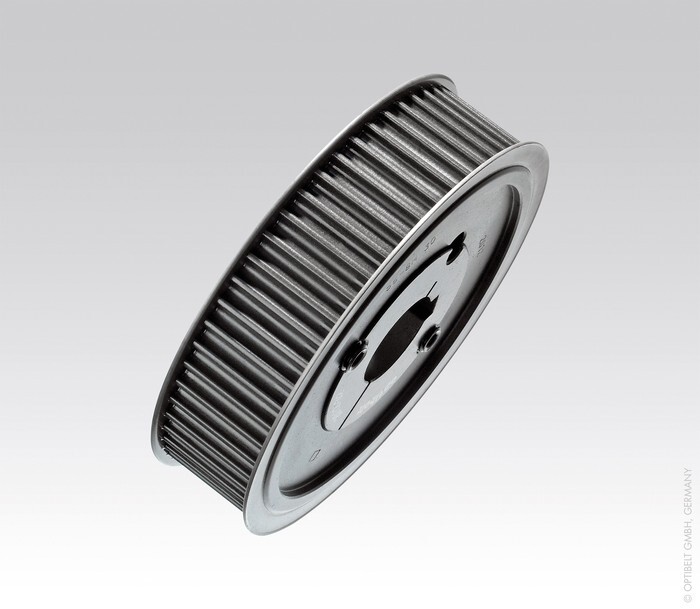

Toothed disc HTD
TB 40-8M-30 for taper bush 1615, STItem-no.: 1072359customs tariff number: 84835020EAN: 4014486230697
Quantity:
1 PiecePackable
Price and stock visible after login
Description
HTD (high torque drive) pulleys are heavy duty pulleys, designed to be used with HTD belts in synchronous belt drives. The pulleys are easily mounted on the shafts using the appropriate taper bushings.
Attributes
De
100.490000 mm
Df
106 mm
Dp
101.860000 mm
F
38 mm
Material
ST
Number of teeth
40
Outer diameter
100.49 mm
Product group
optibelt ZRS for taper bush
Riemenbreite
30 mm
Socket reference
TB 1615
Teilung
8 mm
Typ
HTD timing belt pulleys
Version
3F
Weight
1.46 kg
Weight per
Piece
