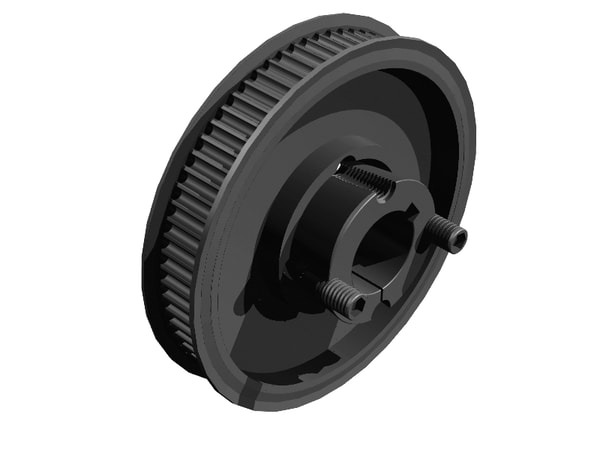

Toothed disc HTD
TB 48-8M-30 for taper bush 2012, STItem-no.: 1072368customs tariff number: 84835020EAN: 4014486230772
Quantity:
1 PiecePackable
Price and stock visible after login
Description
HTD (high torque drive) pulleys are heavy duty pulleys, designed to be used with HTD belts in synchronous belt drives. The pulleys are easily mounted on the shafts using the appropriate taper bushings.
Attributes
De
120.860000 mm
Df
128 mm
Dp
122.230000 mm
F
38 mm
Material
ST
Number of teeth
48
Outer diameter
120.86 mm
Predrill hole d
3 mm
Product group
optibelt ZRS for taper bush
Riemenbreite
30 mm
Socket reference
TB 2012
Teilung
8 mm
Typ
HTD timing belt pulleys
Version
4F
Weight
1.96 kg
Weight per
Piece
