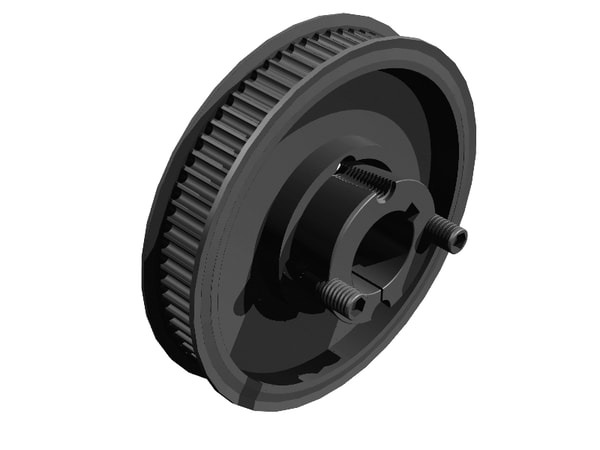

Toothed disc HTD
TB 72-8M-20 for taper bush 2012, STItem-no.: 1072383customs tariff number: 84835020EAN: 4014486230888
Quantity:
1 PiecePackable
Price and stock visible after login
Description
HTD (high torque drive) pulleys are heavy duty pulleys, designed to be used with HTD belts in synchronous belt drives. The pulleys are easily mounted on the shafts using the appropriate taper bushings.
Attributes
De
181.970000 mm
Df
192 mm
Dm
110 mm
Dp
183.350000 mm
F
28 mm
Material
ST
Nabendurchmesser
110 mm
Number of teeth
72
Outer diameter
181.97 mm
Predrill hole d
4 mm
Product group
optibelt ZRS for taper bush
Riemenbreite
20 mm
Socket reference
TB 2012
Teilung
8 mm
Typ
HTD timing belt pulleys
Version
9WF
Weight
3.45 kg
Weight per
Piece
