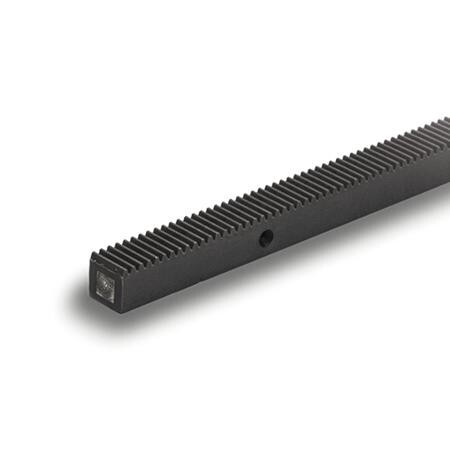

Rack, module 1.5
GN 7822-1,5-500-VG-GRPA - Kunststoff
PA - plastic
Item-no.: 1485695Supplier number: 7822-1,5-500-VG-GRcustoms tariff number: 39269097EAN: 4045525742215
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Gear racks GN 7822 are used in combination with spur gears GN 7802 to convert rotary motion into linear motion. They are used in automation applications with high repeatable precision and frequent changes of direction and load. The steel core increases the stiffness and prevents bending of the racks. In addition, modules 1 / 1.5 / 2 are designed for continuous installation of the racks. The gear racks have a reference profile toothing with a pressure angle of 20°. The force FS refers to the maximum permissible force that can be applied to a single tooth.
Attributes
Actual dimension
565
Colour
GR - grey
Form
VG - Square, straight, toothed
Length l
500
Material
PA - plastic, polyamide
Max. force FS acting on a tooth in N
633
Module
1,5
RoHS
Ja
Weight
0.422 kg

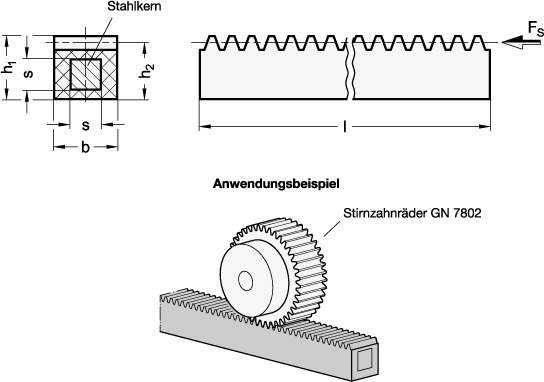

b Zahnbreite
17
h1
17
h2
15.5
max. Kraft FS die auf ein Zahn wirkt
633 N
s
8
