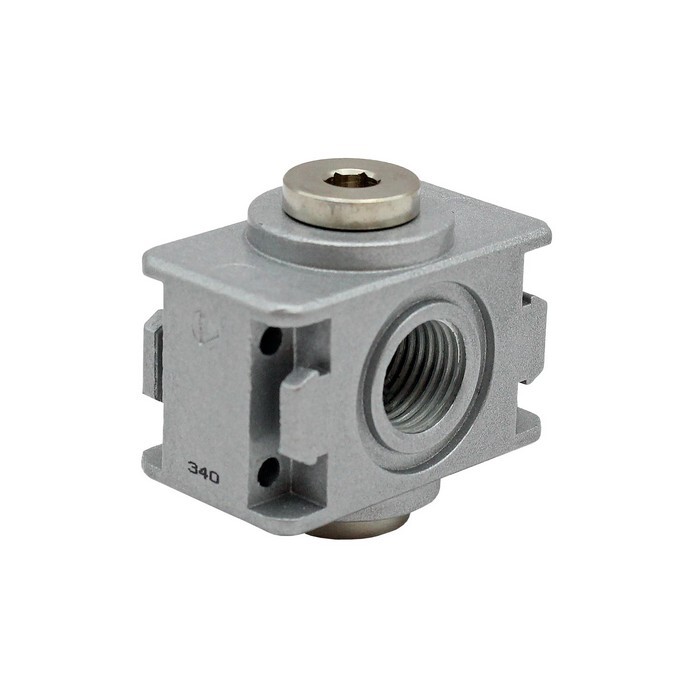

Dual distributor multifix-mini series
IG 1/4", max 16 bar 2 outlets G1/8"Item-no.: 1245816Supplier number: Z 06customs tariff number: 84818099EAN: 4047322174299
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Distributor »multifix-mini«, Size 0, G 1/4, with 2 outlets G 1/8, Input pressure max. 16 bar, Medium / ambient temp. max. 60 °C. Narrow, two-way manifold with two G 1/8 outlets.
Attributes
A
23,0 mm
Ambient temperature max.
60 °C
Ambient temperature min.
-10 °C
BG
0
Flow rate
P → A 2700 l/min, P → B and P → C 1300 l/min
Housing
Zinc die casting
Inlet pressure max.
16 bar
Medium
Druckluft, neutrale Gase
Medium temperature max.
60 °C
Medium temperature min.
-10 °C
Product range
multifix-mini
Riegler article number
100402
Screw thread
G 1/4
Sealing material
NBR
Series
multifix-mini
Size
0
b
36,0 mm
c
18,0 mm
d
18,0 mm
