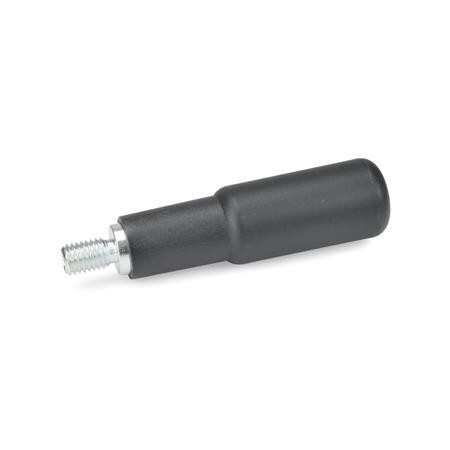

Rotatable cylinder handle
GN 798-KT-22-M6 PA SW, aluminium, steel axle partKT - Plastic
Item-no.: 1213390Supplier number: 798-KT-22-M6EAN: 4045525781818
Quantity:
1 PiecePackable
Item available in 3 variants:
Price and stock visible after login
Description
Typical in design are the revolving handles GN 798 with their stepped shape consisting of two cylinders giving the operator a better grip.
Attributes
Handle diameter d1
22
L1
59
L2
14
Material
KT - Plastic
RoHS
Ja
Screw thread d2
M 6
Weight
0.079 kg
d3
14
d4
18.5
l3
2.5
l3 ≈
2.5
l4
21
