gerader Einschraubstutzen mit Dichtkante
GE08LR CF, komplett Stahl verzinkt, HausmarkeItem-no.: 1112877EAN: 4047322641968
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Straight screw-in fitting, G 1/4 o., Pipe exterior Ø 8 mm, PN bar 315, A/F1 17, A/F2 19, galvanised steel.
Attributes

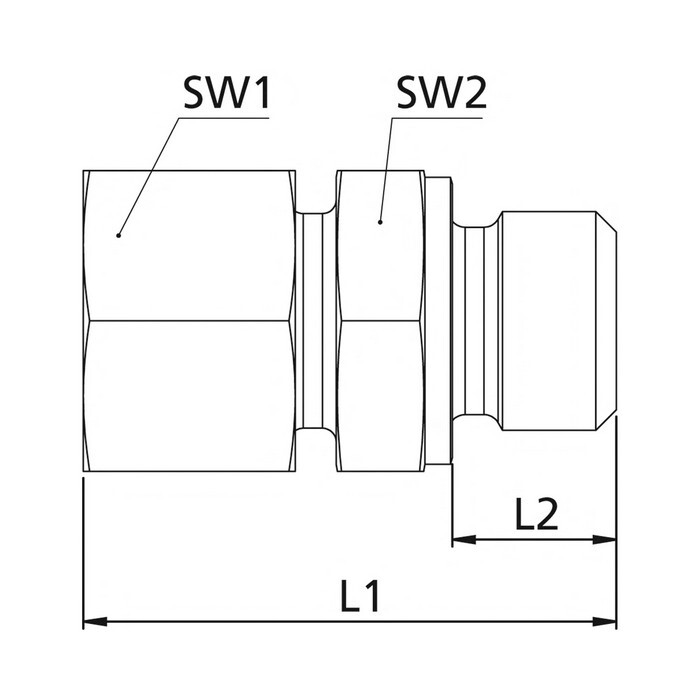

L1
37,0 mm
L2
12,0 mm
Material
Galvanised steel (DIN 2353)
PN
315 bar
Pipe outer Ø
8 mm
Riegler article number
159566
SW 1
17 mm
SW 2
19 mm
Screw thread
G 1/4
