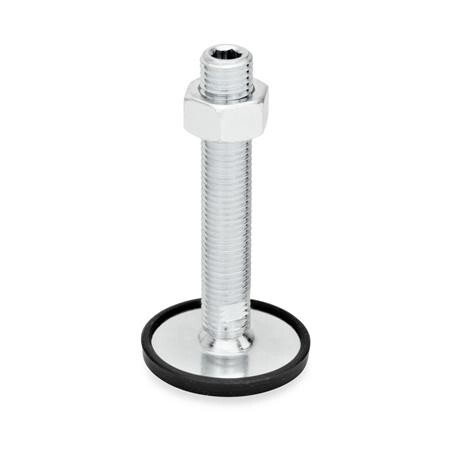

leveling foot
GN 40-60-M16-150-A1-UKST - Stahl
Item-no.: 1222431Supplier number: 40-60-M16-150-A1-UKcustoms tariff number: 73269098EAN: 4045526002851
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Leveling feet GN 40 can be used in a host of combinations of base plates and adjustable spindle versions. The base plate with the rubber underlay protects sensitive surfaces and reduces lateral slippage. The type B0 can also be fastened to the mounting surface through two holes. The leveling feet are supplied fully assembled and are not removable.
Attributes
Ausführung U / UK
10
Foot diameter d1
60
Form (foot plate)
A1 - with rubber pad, clipped on, black
Length l1 (U/UK)
150
Material
ST - Steel
RoHS
Ja
Screw thread d2
M 16
Spindle variant
UK - with nut, hexagon socket at the top and spanner flat at the bottom
Weight
0.290 kg

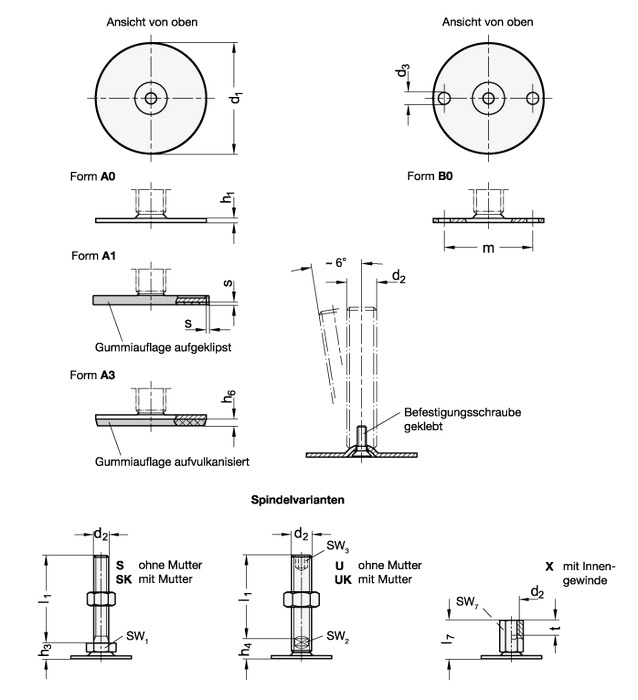

d1
60
d2
M 16
h1
2.5
h4
17
m
48
s
2
sw2
12
sw3
8
