Veerbout
GN 724.3-20-30-R3-ZB-2Art.-Nr.: 1724012Leveranciersnummer: 724.3-20-30-R3-ZB-2douanetariefnummer: 73182900
Aantal:
1 stukPakketgeschikt
Prijs en voorraad zichtbaar na login

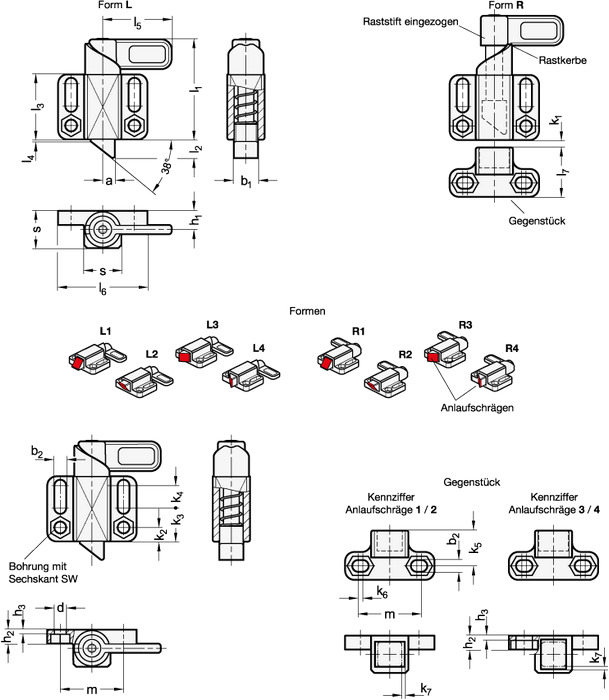

Specificaties
A
10
End
70
Form
R - Rest curve lying on the right
Gewicht
0.954 kg
Kennziffer Anlaufschräge
3 - Start bevel, right
Kennziffer Gegenstück
2 - with counterpart
L2
15
Oberfläche / Werkstoff
ZB - galvanised, blue passivated
RoHS
Ja
SW
17
Spring pressure in N ≈start
22
Square s
30
Width b1
20
b2
10.1
d
10.1
h1
15
h2
14
h3
5
k1min.
2
k2
14
k3
34
k4
10
k5
27.5
k6
3
k7
2
l1 ≈
84
l3
54
l4
1.5
l5
55
l6
80
l7
40
m
55
