Kabelstekker

Type A, 0-250 V, AC/DC M16 IG

Art.-Nr.: 1732672Leveranciersnummer: GS.MV.0-250VEAN: 4047322725989

Aantal:  1 stukPakketgeschikt

Beschrijving

Connector socket, Type A, 0-250 V, AC/DC, M16 IT for media-separated solenoid valves, Type No. BD and BV.

Specificaties

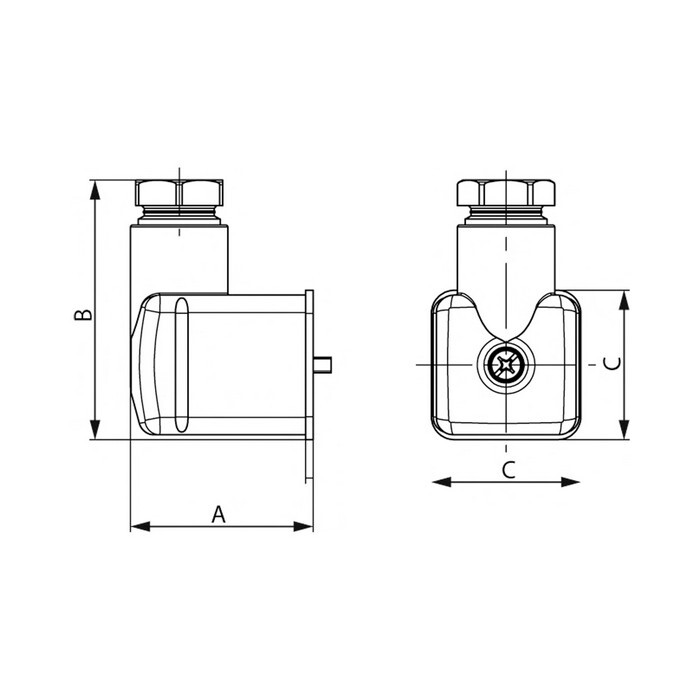

A

35,7 mm

Dauergrenztemperatur max.

90 °C

Dauergrenztemperatur min.

-30 °C

Dauerstrom

10 A

Housing

Polyamide

Protection class

IP 65/IP 67

Sealing material

NBR

b

51,0 mm

c

29,2 mm

Downloads

Technische Dokumentationbyhx_p_3-533.pdf
788.53 kB
