3/2 -5/2 richtingsbedieningsklep IG 1/4", DN7, 1,5-10 bar Aluminium, gatenpatroon volgens NAMUR, veerretour

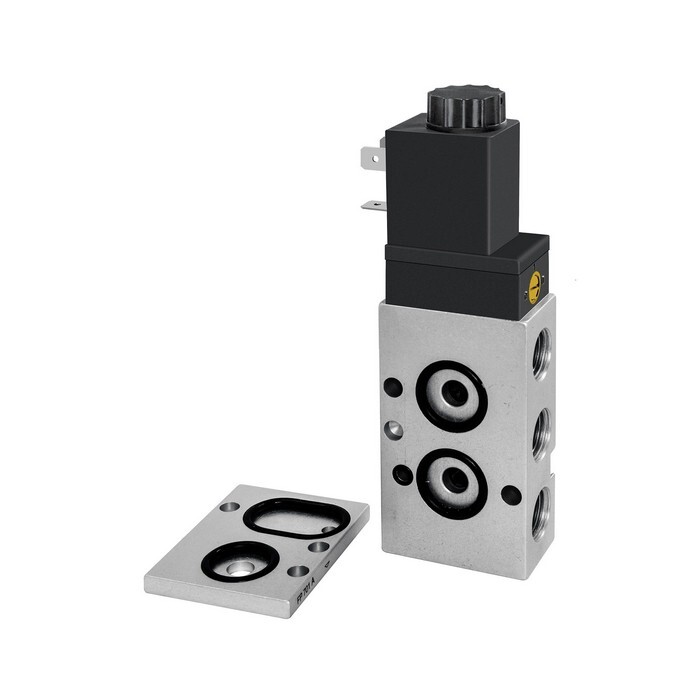

3/2-5/2-way valve, NAMUR, with air spring, Anodised aluminium, Temp. max. 50 °C, Working pressure 1.5 10 bar, G 1/4, 24 V DC. Pilot-operated 3/2- and 5/2-way spool valves with threaded ports and a NAMUR style interface with air purging function. By adding the conversion plate supplied with each valve, the device can be adapted to 3/2-way function. The following finishes are available on request:

• Stainless steel, alternatively Ematal surfaces
• ATEX
• suitable for low temperatures
• suitable for high temperatures
