Beschrijving

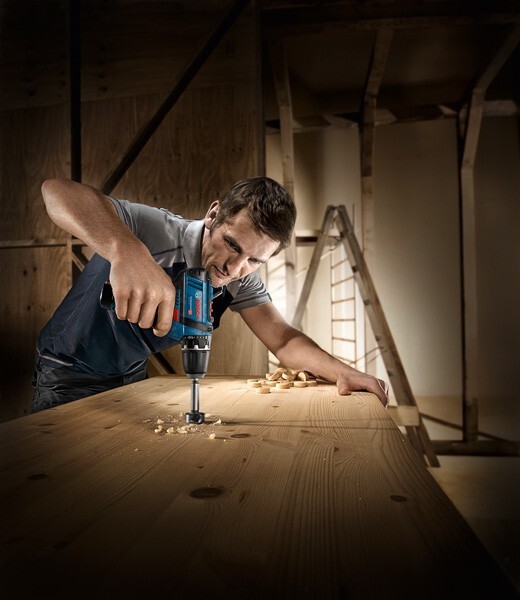

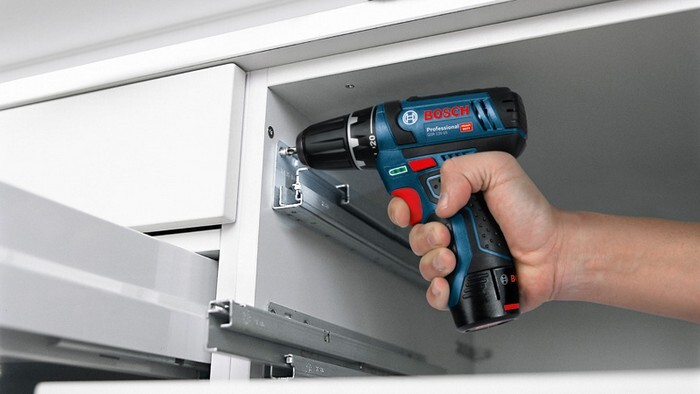

Cordless Drill/Driver GSR 12V-15, The GSR 12V-15 Professional cordless drill driver offers well-balanced performance and compactness in Bosch´s 12 V category. Its 30 Nm hard torque and 0-1,300 rpm offer the best performance-to-size ratio. Its compact design allows for optimum handling and makes it ideal for working overhead and in tight spaces. Overload, overheating, and deep discharge are prevented by the drill driver´s Electronic Cell Protection. This tool is intended for drilling in wood with a maximum diameter of 19 mm, in steel up to 10 mm, and for screw diameters of up to 7 mm. It is compatible with all Bosch Professional 12 V batteries and chargers (Professional 12V System). The GSR 12V-15 Professional also features 2-gear, Autolock, charge level indicator, Electronic Motor Protection, and Li-ion. Charger GAL 12V-20 Professional, 2 x battery GBA 12V 2.0Ah (1 600 Z00 02X)
Specificaties
Accuspanning
12.0 V
Boor-Ø staal, max.
10 mm
Draaimoment (zacht/hard/max.)
15/30/- Nm
Draaimomentniveaus
1
Draaimomentniveaus (extra)
1
Draaimomentniveaus (standaard)
20
Drill-Ø wood, max.
19 mm
Klembereik boorhouder, min./max.
1 / 10 mm
Meetonzekerheid k (boren in metaal)
2.5 m/s²
Meetonzekerheid k (schroeven)
2.5 m/s²
Onbelast toerental (1e versnelling / 2e versnelling)
0 - 400 / 0 - 1300 min-1
Onbelast toerental, 1e versnelling, tot
400 min-1
Onbelast toerental, 1e versnelling, uit
0 min-1
Onbelast toerental, 2e versnelling, tot
1300 min-1
Onbelast toerental, 2e versnelling, van
0 min-1
Packaging dimensions (width x length x height)
245 x 320 x 115 mm
Schroef Ø, max.
7 mm
Torque (hard)
30 Nm
Torque (soft)
15 Nm
Trillingsemissie ah [boren in metaal]
1.5 m/s²
Trillingsemissie ah [schroeven]
1.5 m/s²
Werkzeugabmessungen (Höhe)
178 mm
Downloads
Catalogi
Accessoires
Jouw prijs
(per PACK)
22,16 €
UVP
32,96 € / 27,70 €
