Beschrijving

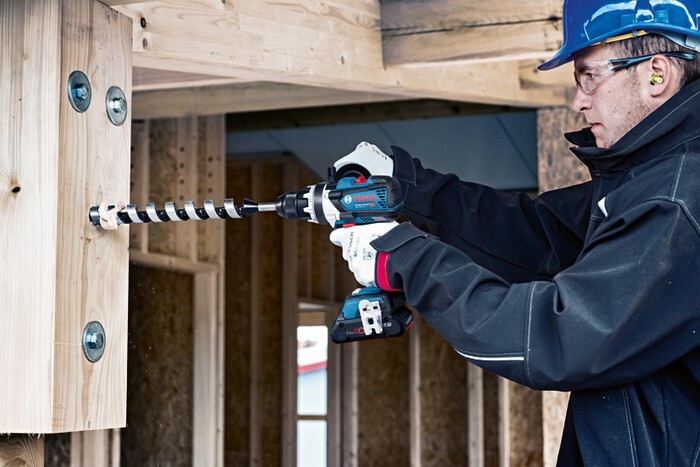

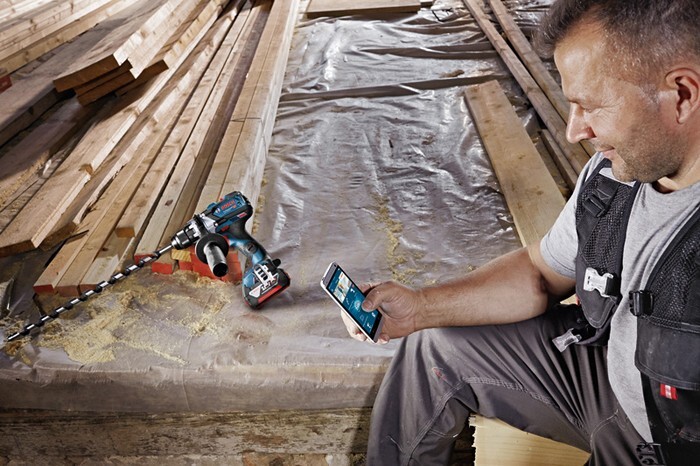

Cordless Drill/Driver GSR 18V-110 C, The GSR 18V-110 C Professional is an extremely powerful and robust cordless drill driver with brushless motor in Bosch´s 18 V category. Its 110 Nm maximum torque and brushless motor make the tool extremely strong. Its full-metal chuck makes the drill driver highly durable and capable of handling even the toughest applications on the jobsite. Furthermore, it is equipped with a Bluetooth Connectivity option to connect directly to a smartphone for additional tool control. This tool is intended for drilling in wood with a maximum diameter of 82 mm, in steel up to 13 mm, and for screw diameters of up to 12 mm. It is compatible with all Bosch Professional 18 V batteries and chargers (Flexible Power System). The GSR 18V-110 C Professional also features 2-gear, Autolock, KickBack Control, Electronic Motor Protection, handle, Li-ion, and precision clutch. Compatible with the Bosch Professional 18V System and with the multi-brand battery alliance AMPShare. Auxiliary handle (1 602 025 07X), L-BOXX 136 (1 600 A01 2G0)
Specificaties
Aantal slagen, max.
31500 bpm
Accu type
Lithium-ion
Accuspanning
18.0 V
Boor-Ø metselwerk, max.
16 mm
Boor-Ø staal, max.
13 mm
Draaimoment (zacht/hard/max.)
47/85/110 Nm
Draaimomentniveaus
25+1
Draaimomentniveaus (extra)
1
Draaimomentniveaus (standaard)
25
Drill-Ø wood, max.
82 mm
Klembereik boorhouder, min./max.
1.5 / 13 mm
Onbelast toerental (1e versnelling / 2e versnelling)
0 - 480 / 0 - 2100 min-1
Onbelast toerental, 1e versnelling, tot
480 min-1
Onbelast toerental, 1e versnelling, uit
0 min-1
Onbelast toerental, 2e versnelling, tot
2100 min-1
Onbelast toerental, 2e versnelling, van
0 min-1
Packaging dimensions (width x length x height)
360 x 442 x 155 mm
Schroef Ø, max.
12 mm
Torque (hard)
85 Nm
Torque (max.)
110 Nm
Torque (soft)
47 Nm
Weight excluding battery
1.8 kg

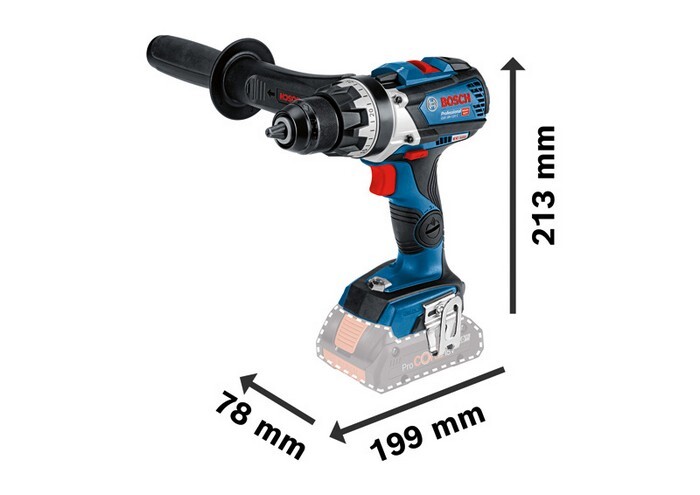

Werkzeugabmessungen (Höhe)
213 mm
