Beschrijving

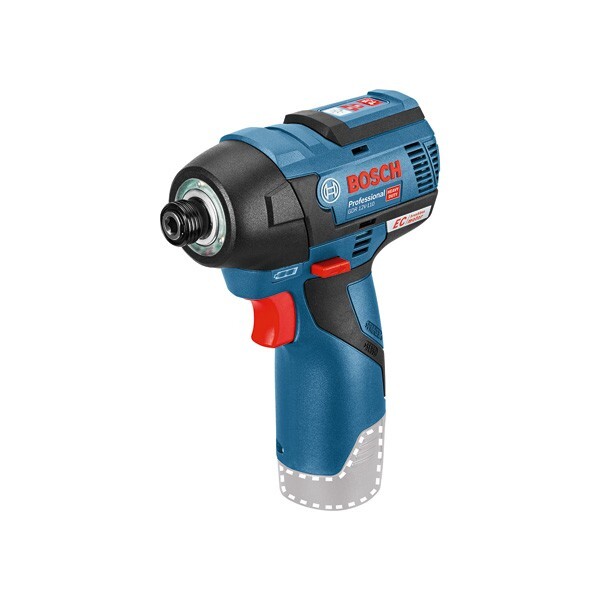

Cordless Impact Driver GDR 12V-110, The GDR 12V-110 Professional cordless impact driver with brushless motor is the most compact solution in Bosch´s 12 V category. Its compactness ensures perfect handling, even in the tightest spaces and overhead. For greater accuracy while screwdriving, the impact driver's 2-stage Power Control prevents the overtightening of small screws. It features a strong motor with 110 Nm of powerful torque, making it appropriate for most conventional cordless impact driver applications. This tool is intended for screws with diameters M 4 – M 12. It is compatible with all Bosch Professional 12 V batteries and chargers (Professional 12V System). The GDR 12V-110 Professional also features a charge level indicator, Electronic Cell Protection, Li-ion, speed selection, and variable speed. Cardboard box, L-BOXX inlay for tool
Specificaties
Aantal slagen
0-3100 bpm
Aantal slagen (1e fase)
0-2700 bpm
Aantal slagen (2e fase)
0-3100 bpm
Aantal slagen tot
3100 bpm
Aantal slagen, van
0 bpm
Accuspanning
12.0 V
Draaimoment, max.
110 Nm
Draaimomentniveaus
2
Gereedschapshouder
1/4'' zeskant uni
Gewicht inclusief accu
0.9 kg
Leerlaufdrehzahl, von
0 U/min
Meetonzekerheid k (Vastdraaien van schroeven en moeren van de maximaal toegestane grootte)
1.5 m/s²
Onbelast toerental
0-1200 U/min
Onbelast toerental (1e versnelling)
0-1200 min-1
Onbelast toerental (2e versnelling)
0-2600 min-1
Onbelast toerental, 1e versnelling, tot
1200 min-1
Onbelast toerental, 1e versnelling, van
0 min-1
Onbelast toerental, 2e versnelling, tot
2600 min-1
Onbelast toerental, 2e versnelling, van
0 min-1
Schroef Ø
M 4 - M 12
Trillingsemissie ah [Aanhalen van bouten en moeren van maximaal toelaatbare grootte]
10.0 m/s²
