Klembeugel voor montagenok

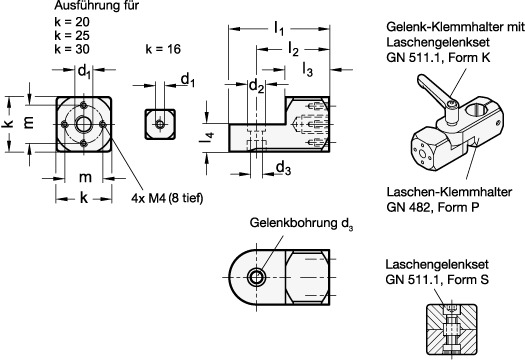

Attachment swivel mountings clamps GN 484 are primarily designed for mounting sensor holders GN 479 and retaining plates GN 479.1. They are fitted with a central thread and for the size k = 20 and higher, an additional bore template 4 x M4. They can be combined with swivel mounting clamps GN 482, T-swivel mounting clamps GN 483 as well as base plate swivel mounting clamps GN 485 with the same k dimensions to mounting clamps joints. Clamping kits GN 511.1 with screw (type S) and with adjustable hand lever (type K) are available for this purpose. The article code for ordering is shown in the dimensional table.
