Stop wartel

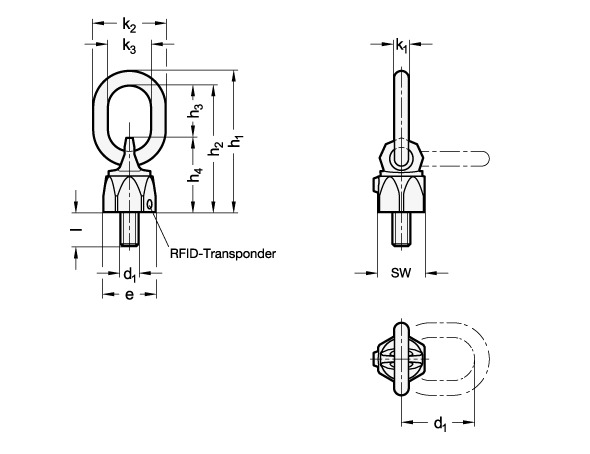

Load rings GN 5860 rotate running in ball bearings. The freely rotating ring allows the bolts to hold loads in any tensile direction. The rated load-bearing capacity is shown clearly on the load ring. It is valid for the most unfavourable case in terms of the types of load listed opposite. Load rings GN 5860 comply with Machine Engineering Directive 2006 / 42 / EG and are BG tested. The integrated RFID transponder clearly marks and identifies the sling and lifting gear, e.g. during the prescribed regular inspection. The operating instruction contains further guidelines and is included with every load ring (see also at www.ganternorm.com/en/service).
