Ganter

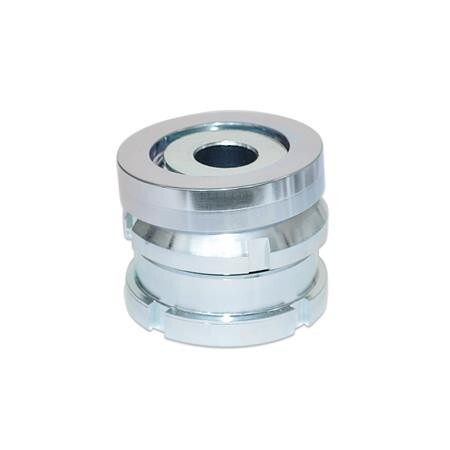

Nivelleringselement

GN 350.2-25-6,6-35-ST met bolvormige schijf
ST - Staal
Art.-Nr.: 1200700Leveranciersnummer: 350.2-25-6,6-35-STEAN: 4045525712829

Aantal: ​​ 1 stukPakketgeschikt
Artikel in 64 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Leveling sets GN 350.2 are used for leveling, adjusting and linking operations. The spherical washer allows precise installation of two non parallel planes at a required gradient up to ≈ 4°. They comprise a threaded upper sleeve and an internal threaded lower sleeve. The fine thread allows a stepless and precise setting and locking using the C-Spanner DIN 1810. A locking ring serves as a height limiter for the max. height.
Specificaties
Boringdiameter d2
6.6
Buitendiameter d1
25
F2
30.7
Gewicht
0.099 kg
Haaksleutel
1810-A25-28
Hoog
50
Hoogte h11 (hoog)
35
Materiaal
ST - Staal
RoHS
Ja
Statische Belastbarkeit F in kN F1
40
Voor schroef
M 6
d3
M 15 x 1
