Boogklem

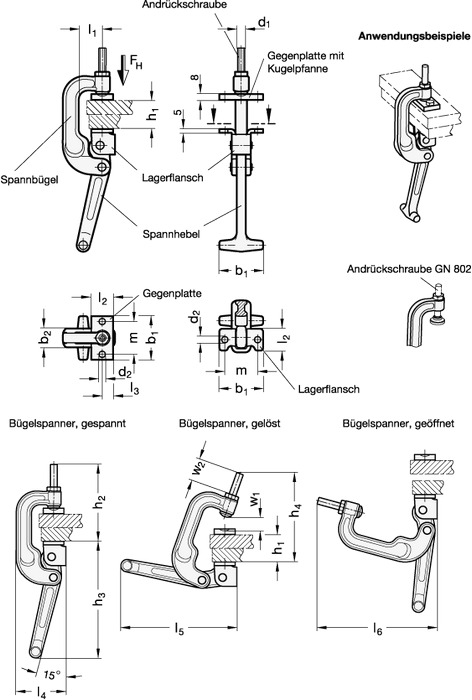

C-Clamps GN 855 feature an especially robust, sturdy and compact design, allowing them to be used under severe and demanding conditions, e.g. higher temperatures, dust, mist, etc. The C-Clamps are normally installed and mounted at the clamping point. The counter plate (supplied loose) has a ball socket and is designed for attaching to the counter piece to be clamped. In connection with the ball-type bolt, this configuration ensures the precise positioning of the latch clamp. If the counter plate is not to remain at the counter piece to be clamped, the clamping bracket may alternatively also be used to hold calmping screws GN 802 which have a pendulum-type bearing surface.
