Beschrijving
The design of the cabinet U-handles GN 767 matches the product family Ergostyle®. The mechanism (screws/nuts) is shrouded by the removable end caps. Available in the different Ergostyle® colors they offer additional possibilities for color schemes. On assembly the two end caps are inserted from above. To remove the end caps, a flat screw driver is used in the recess to prise them out of their location.

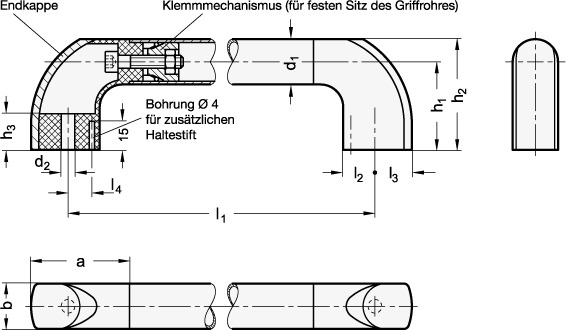

Specificaties
A
74
Gewicht
0.570 kg
Greepdiameter d1
35
Kleur afdekkap
D GN - groen, RAL 6017, glanzend
L2
24.5
Lengte l1
500
Materiaal
AL - Aluminium
RoHS
Ja
b
35
d2
10.5
h1
67.5
h2
85
h3
28
l3
28.5
l4
18.5
