Handgreep, schuin
GN 425.1-NI-10-100-GS roestvast staalNI - Edelstahl
Art.-Nr.: 1201734Leveranciersnummer: 425.1-NI-10-100-GSdouanetariefnummer: 83024900EAN: 4045525248380
Aantal:
1 stukPakketgeschikt
Prijs en voorraad zichtbaar na login
Beschrijving

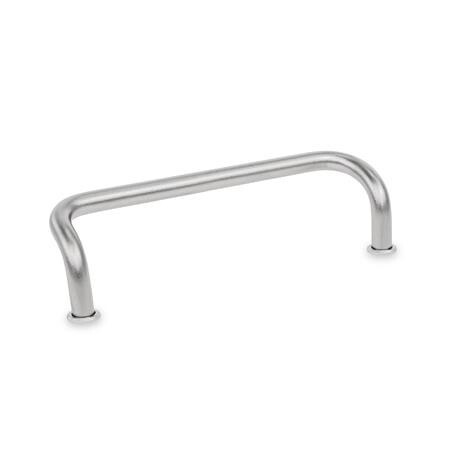

Cabinet U-handles GN 425.1 are manufactured from a bent stainless steel profile. Cabinet U-handles with Ø d1 = 8 and 10 are delivered with two location disks to ensure proper contact of the handle even in the case of large connecting holes. The disks are loosely enclosed. The stainless steel version is preferred over the chrome-plated version in steel for outdoor applications.

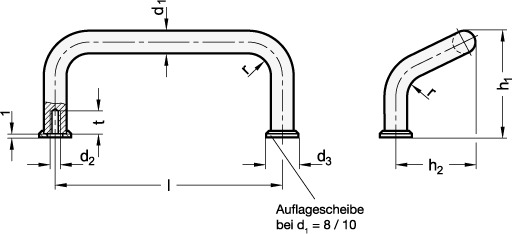

Specificaties
Gewicht
0.121 kg
Handgreepdiameter d1 (NI)
10
Lengte l
100
Materiaal
NI - Roestvrij staal
Oppervlakte
GS - mat gestraald
R
11
RoHS
Ja
Schroefdraad
M 5
d3
15
h1
47
h2
35
t min.
12
tmin.
12
