Kogelhandvat, draaibaar
DIN 98-AL-36-D AluminiumAL - Aluminium
Art.-Nr.: 1216866Leveranciersnummer: DIN 98-AL-36-DEAN: 4045525418967
Aantal:
1 stukPakketgeschikt
Artikel in 3 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
Revolving handles DIN 98 type D are supplied unassembled so that the shaft can be press fitted or screwed into a tapped blind bore prior to assembly. Light taps with a soft-head hammer in the axial direction affix the handle to the axle with sufficient firmness that it is held in place axially while still remaining turnable.

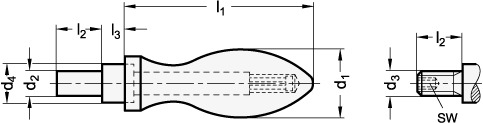

Specificaties
Gewicht
0.321 kg
Greepdiameter d1
36
L1
106
L2
26
Materiaal
AL - Aluminium
RoHS
Ja
Vorm
D - met cilindrische aansluiting
d2 Form DST / AL
16
d4
22
l1 ≈
106
l3
11
sw Hexagon socket
8
sw Innensechskant
8
