Beluchtings- en ontluchtingsventiel

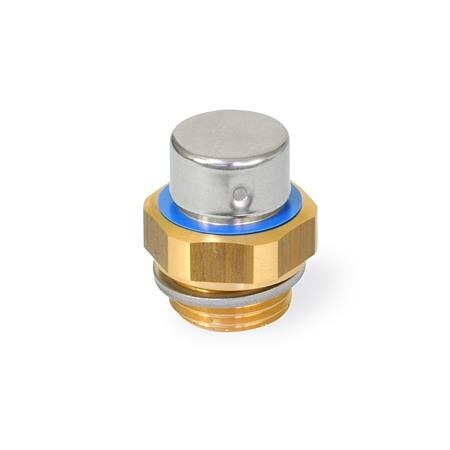

Breather filters GN 882 are used when the air exchange is to be allowed between the inside of the container and the ambient air. The filter function is marked by a blue colour ring. The stainless steel wire mesh prevents air-borne particles of a certain size from being carried from the outside to the inside of the container. It also ensures that e.g. oil particles do not escape to the outside. The above diagram shows the air passage as a factor of the differential pressure. Assembly instruction: For mounting on walls of less than 4 mm thickness please use a mounting nuts GN 7430.
