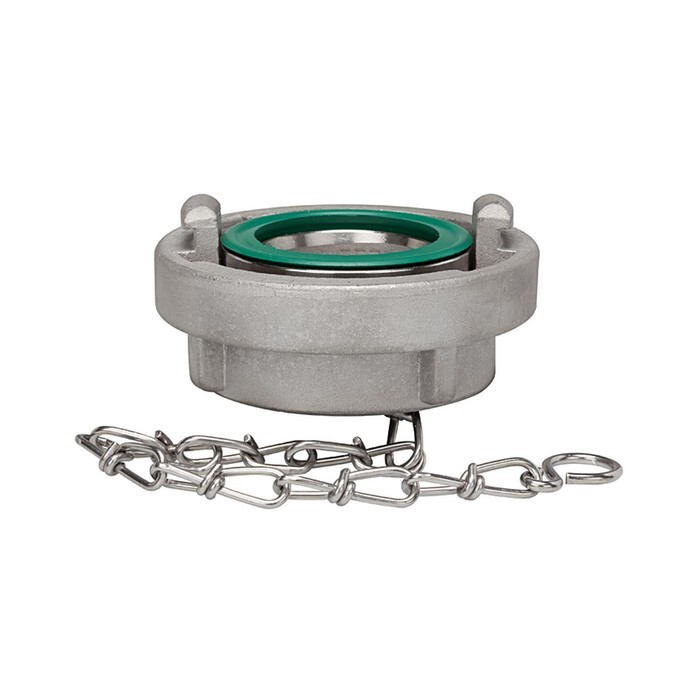

Blanke koppeling met ketting
Storz 100 KA 115 mm 16 bar Roestvrij staal V4AArt.-Nr.: 1733017Leveranciersnummer: 3407.115EAN: 4047322256865
Aantal:
1 stukPakketgeschikt
Prijs en voorraad zichtbaar na login
Beschrijving
Storz blind coupling, Chain, Stainless steel V4A, Storz size 100, Tappet distance 115 mm, Operating pressure max. 16 bar. High-quality series in V4A stainless steel. For quick and simple hose connections. User friendly, the coupling elements are joined without damaging the seal. Applications: Industrial plant engineering, shipbuilding, chemical industry.
Specificaties
Bracket spacing
115 mm
Material
Stainless steel V4A
Max. operating pressure
16 bar
Operating temperature max.
200 °C
Operating temperature min.
-15 °C
Sealing material
FKM
Storz size
100
