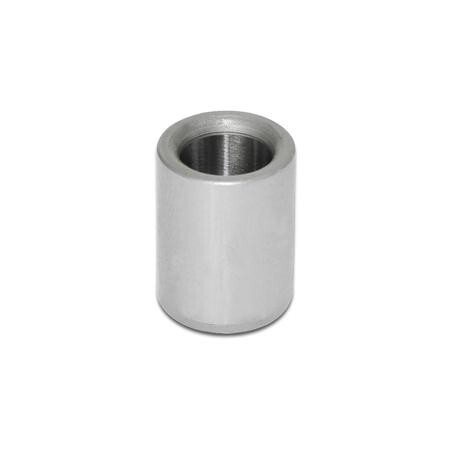

Boorbus DIN 179 A
11,4x18x25 mm lang, 1.0718 gecarbonitreerd, HRC 62±2ST - Stahl
Art.-Nr.: 1402414douanetariefnummer: 73182900EAN: 4045525505070
VPE (Verpakking): 10 stukAantal:
1 stukPakketgeschikt
Jouw prijs:
(per STK) Prijs op aanvraag
Prijs en voorraad zichtbaar na login
Beschrijving
Guide bushings DIN 179 are characterized by the tight dimensional and positional tolerances in connection with the hardened and finely machined surface. As a result, they are suitable for extremely universal use in many applications. Holes with tolerance H7 are recommended for installing the bushings. In connection with the outer diameter of the bushing with a tolerance of n6, use of a transition adapter is recommended. For guide applications, combination with the guide pins GN 771.1 is recommended.
Specificaties
... ,1
B 11,1
... ,2
B 11,2
... ,3
B 11,3
... ,4
B 11,4
... ,5
B 11,5
... ,6
B 11,6
... ,7
B 11,7
... ,8
B 11,8
... ,9
B 11,9
Diameter d
B 11,4
Gewicht
0.030 kg
L2
4
Lengte l1
25
Materiaal
ST - Staal
RoHS
Ja
Vorm
A - Gat aan één kant afgerond
d11 ... ,0
B 11
d2
18
d3
22
