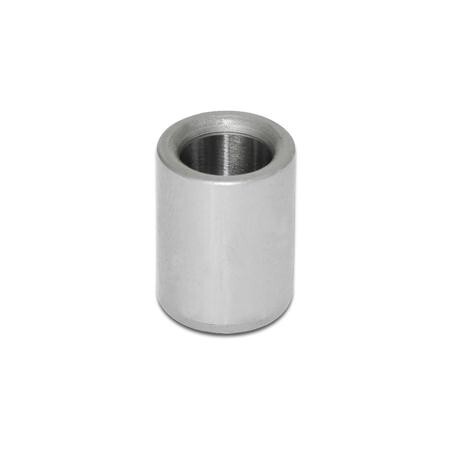

Boorbus DIN 179 A
8,5x15x12 mm kort, 1.0718 gecarbonitreerd, HRC 62±2ST - Staal
Art.-Nr.: 1020856douanetariefnummer: 73182900EAN: 4045525594326
VPE (Verpakking): 10 stukAantal:
1 stukPakketgeschikt
Artikel in 551 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
Guide bushings DIN 179 are characterized by the tight dimensional and positional tolerances in connection with the hardened and finely machined surface. As a result, they are suitable for extremely universal use in many applications. Holes with tolerance H7 are recommended for installing the bushings. In connection with the outer diameter of the bushing with a tolerance of n6, use of a transition adapter is recommended. For guide applications, combination with the guide pins GN 771.1 is recommended.
Specificaties
... ,1
B 8,1
... ,2
B 8,2
... ,3
B 8,3
... ,4
B 8,4
... ,5
B 8,5
... ,6
B 8,6
... ,7
B 8,7
... ,8
B 8,8
... ,9
B 8,9
Diameter d
B 8,5
Gewicht
0.011 kg
L2
3
Lengte l1
12
Materiaal
ST - Staal
RoHS
Ja
Vorm
A - Gat aan één kant afgerond
d2
15
d3
18
