Beschrijving

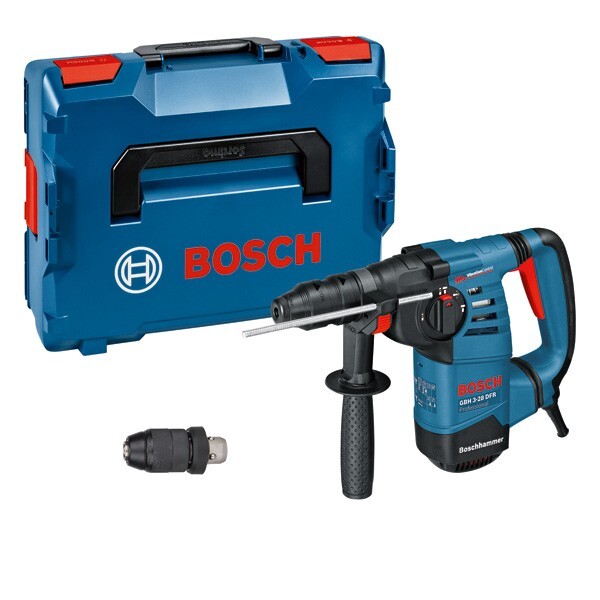

Rotary Hammer with SDS plus GBH 3-28 DFR, The GBH 3-28 DFR Professional is the most versatile tool in Bosch’s SDS plus corded rotary hammer category. Its compact housing enables multiple applications in narrow and tight workspaces. Designed for convenience, its L-shaped design provides a balanced weight distribution, while its Vibration Control allows effortless continuous work. It also features a high power-to-weight ratio, with an 800 W motor and a tool weight of only 3.6 kg. This tool is intended for drilling and light chiselling in concrete, masonry, wood, and metal. It is compatible with various dust attachments. The GBH 3-28 DFR Professional also features a keyless chuck for round shaft drill bits, a quick-change chuck (SDS plus), Reverse Mode, Rotation Control Clutch, Variable Speed, and Vario-Lock. Depth stop 210 mm (1 613 001 010), Machine cloth, L-BOXX 136 (1 600 A01 2G0), Quick change chuck 13 mm (2 608 572 212), SDS plus quick-change chuck (2 608 572 213), Auxiliary handle (2 602 025 191), Grease tube (spare part number 1 615 430 010), 1/1 L-Boxx inlay for GBH 3-28 (1 600 A00 2VJ)
Specificaties
Aantal slagen bij nominaal toerental
0 - 4000 bpm
Boor-Ø beton met hamerboor
4 - 28 mm
Gereedschapshouder
SDS plus
Gewicht
3.6 kg
Impact rate at rated speed, from
0 bpm
Impact rate at rated speed, up to
4.000 bpm
Max. boor-Ø hout
30 mm
Max. boor-Ø metselwerk, kernboren
82 mm
Max. boordiameter metaal
13 mm
Nominaal ingangsvermogen
800 W
Nominale toerental
0 - 900 min-1
Opt. toepassingsgebied beton, hamerboor
12 - 18 mm
Packaging dimensions (width x length x height)
360 x 440 x 145 mm
Rated speed, from
0 min-1
Rated speed, up to
900 min-1
Rec. appl. range concrete, hammer drill bits, from
12 mm
Rec. appl. range concrete, hammer drill bits, to
18 mm
Schlagenergie
3,1 J
Slagenergie (volgens EPTA 05/2016)
3.1 J
Spanning, elektrisch
230 V
Tool dimensions (length)
233 mm
Werkzeugabmessungen (Breite)
354 mm
Werkzeugabmessungen (Höhe)
233 mm
