Producten
Gedore

CAPTURE LITE

1100 Nm 038170 Gedore CL 1100
Art.-Nr.: 1575423Leveranciersnummer: CL 1100douanetariefnummer: 90318080EAN: 0616050810133

Aantal: ​​ 1 stuk ​ = ​ 1 VerpakkingPakketgeschikt
Op korte termijn verkrijgbaar

Beschrijving

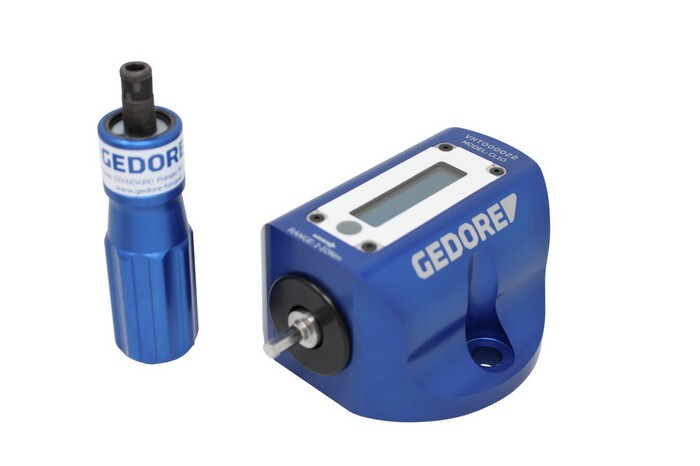

Digital torque tester for testing torque wrenches and torque screwdrivers, Light yet robust due to aluminium housing, 5 models in the range from 0.02 Nm to 350 Nm, 7 models in the range from 0,02 to 3.000 N·m, Measuring tolerance +/- 1 % for all readings, 3 measuring modes: floating value display (track), kink point detection (first peak), peak value measurement (peak), Simple & Easy operation due to 1-button operation (measuring mode, unit), Switchable between Nm, lbf·ft and lbf·in, Optimal readability due to single-line illuminated OLED display, Autostart function when a torque tool is inserted, Auto-sleep mode when not in use, Easy mounting on the table or on the wall, Power supply and data output via USB connection, Scope of delivery: Capture Lite tester, USB connection cable, Adapter (depending on model), Operating instructions, Test certificate, Stable plastic case with inlay, Stable plastic case with inlay
Piktogramm
Piktogramm
Specificaties
Actuating direction
Right
Adapter
1" square, 3/4" square
Antriebsaufnahme, Sechskant- (metrisch)
36 mm
Antriebsaufnahme, Vierkant- (metrisch)
25 mm
Befestigung/Montage
2x M12, tightening torque 47 Nm
Graphic display
Ja
Interface
USB
Material
Aluminium housing
Measuring accuracy Torque
± 1 tolerance for all readings %
Net weight
5 kg
Resolution
0,1
Surface
Powder-coated
Torque (max.)
1100 Nm
Torque (min.)
80 Nm
Torque range (min./max.)
80 to 1100 Nm
Total height
100 mm
Total length
140 mm
Total width
120 mm
